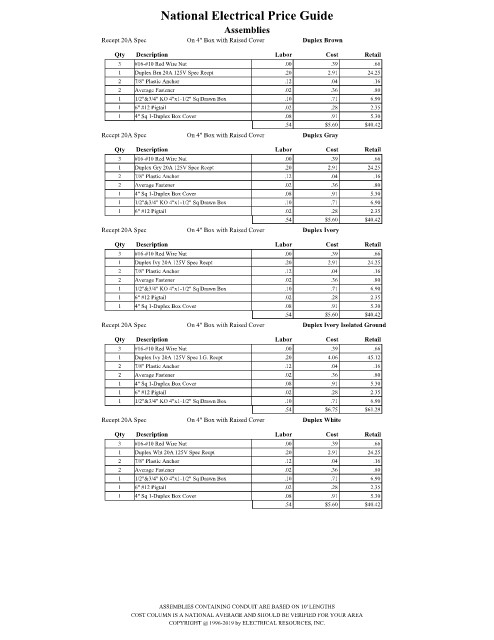

Page 2618 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Spec On 4" Box with Raised Cover Duplex Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Brn 20A 125V Spec Recpt .20 2.91 24.25
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 4" Sq 1-Duplex Box Cover .08 .91 5.30
.54 $5.60 $40.42
Recept 20A Spec On 4" Box with Raised Cover Duplex Gray

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Gry 20A 125V Spec Recpt .20 2.91 24.25
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq 1-Duplex Box Cover .08 .91 5.30
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.54 $5.60 $40.42
Recept 20A Spec On 4" Box with Raised Cover Duplex Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Ivy 20A 125V Spec Recpt .20 2.91 24.25
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 4" Sq 1-Duplex Box Cover .08 .91 5.30
.54 $5.60 $40.42
Recept 20A Spec On 4" Box with Raised Cover Duplex Ivory Isolated Ground
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Ivy 20A 125V Spec I.G. Recpt .20 4.06 45.12
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq 1-Duplex Box Cover .08 .91 5.30
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.54 $6.75 $61.29
Recept 20A Spec On 4" Box with Raised Cover Duplex White

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Wht 20A 125V Spec Recpt .20 2.91 24.25
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 4" Sq 1-Duplex Box Cover .08 .91 5.30
.54 $5.60 $40.42

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
