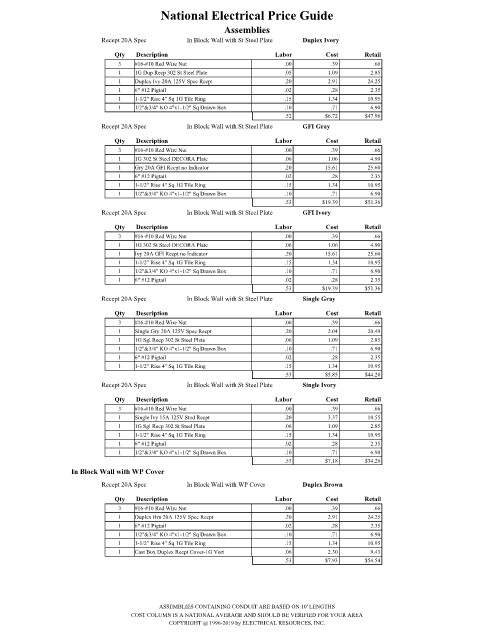

National Electrical Price Guide

Assemblies
Recept 20A Spec In Block Wall with St Steel Plate Duplex Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 Duplex Ivy 20A 125V Spec Recpt .20 2.91 24.25
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.52 $6.72 $47.96
Recept 20A Spec In Block Wall with St Steel Plate GFI Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G 302 St Steel DECORA Plate .06 1.06 4.90
1 Gry 20A GFI Recpt no Indicator .20 15.61 25.60
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $19.39 $51.36
Recept 20A Spec In Block Wall with St Steel Plate GFI Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G 302 St Steel DECORA Plate .06 1.06 4.90
1 Ivy 20A GFI Recpt no Indicator .20 15.61 25.60
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.53 $19.39 $51.36
Recept 20A Spec In Block Wall with St Steel Plate Single Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Gry 20A 125V Spec Recpt .20 2.04 20.49
1 1G Sgl Recp 302 St Steel Plate .06 1.09 2.85
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.53 $5.85 $44.20
Recept 20A Spec In Block Wall with St Steel Plate Single Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Ivy 15A 125V Stnd Recpt .20 3.37 10.55
1 1G Sgl Recp 302 St Steel Plate .06 1.09 2.85
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $7.18 $34.26
In Block Wall with WP Cover
Recept 20A Spec In Block Wall with WP Cover Duplex Brown

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Brn 20A 125V Spec Recpt .20 2.91 24.25
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 Cast Box Duplex Recpt Cover-1G Vert .06 2.30 9.43
.53 $7.93 $54.54

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
