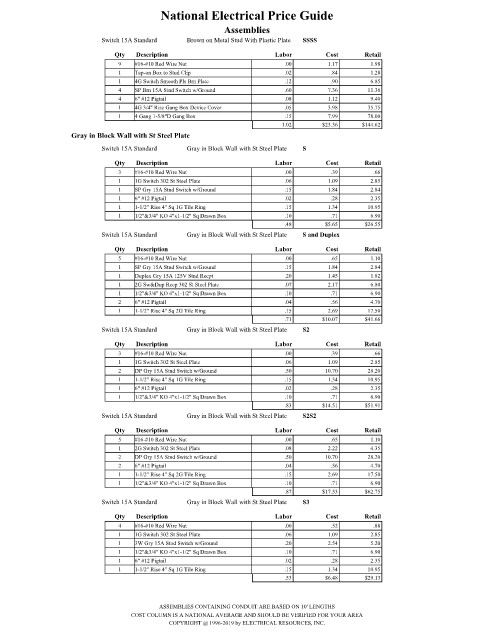

National Electrical Price Guide

Assemblies
Switch 15A Standard Brown on Metal Stud With Plastic Plate SSSS
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 Tap-on Box to Stud Clip .02 .84 1.28
1 4G Switch Smooth Pls Brn Plate .12 .90 6.85
4 SP Brn 15A Stnd Switch w/Ground .60 7.36 11.36
4 6" #12 Pigtail .08 1.12 9.40
1 4G 3/4" Rise Gang Box Device Cover .05 3.98 35.75
1 4 Gang 1-5/8"D Gang Box .15 7.99 78.00
1.02 $23.36 $144.62
Gray in Block Wall with St Steel Plate
Switch 15A Standard Gray in Block Wall with St Steel Plate S

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 SP Gry 15A Stnd Switch w/Ground .15 1.84 2.84
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.48 $5.65 $26.55
Switch 15A Standard Gray in Block Wall with St Steel Plate S and Duplex
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 SP Gry 15A Stnd Switch w/Ground .15 1.84 2.84
1 Duplex Gry 15A 125V Stnd Recpt .20 1.45 1.82
1 2G Sw&Dup Recp 302 St Steel Plate .07 2.17 6.80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.71 $10.07 $41.66
Switch 15A Standard Gray in Block Wall with St Steel Plate S2

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Switch 302 St Steel Plate .06 1.09 2.85
2 DP Gry 15A Stnd Switch w/Ground .50 10.70 28.20
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.83 $14.51 $51.91
Switch 15A Standard Gray in Block Wall with St Steel Plate S2S2
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Switch 302 St Steel Plate .08 2.22 4.35
2 DP Gry 15A Stnd Switch w/Ground .50 10.70 28.20
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.87 $17.53 $62.75
Switch 15A Standard Gray in Block Wall with St Steel Plate S3
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 3W Gry 15A Stnd Switch w/Ground .20 2.54 5.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.53 $6.48 $29.13

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
