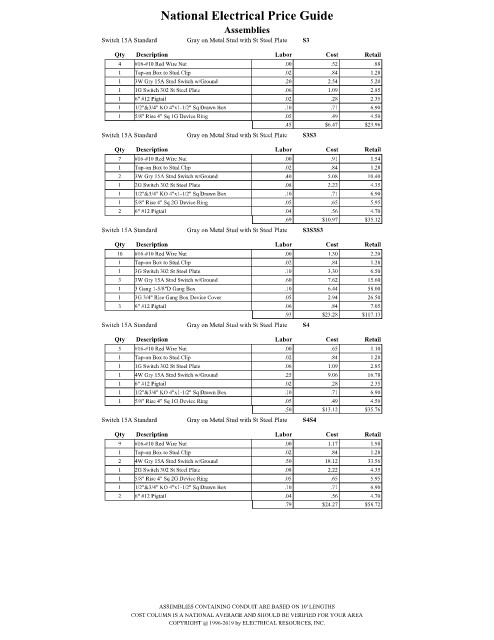

Page 2701 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 15A Standard Gray on Metal Stud with St Steel Plate S3
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 Tap-on Box to Stud Clip .02 .84 1.28
1 3W Gry 15A Stnd Switch w/Ground .20 2.54 5.20
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $6.47 $23.96
Switch 15A Standard Gray on Metal Stud with St Steel Plate S3S3

Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
2 3W Gry 15A Stnd Switch w/Ground .40 5.08 10.40
1 2G Switch 302 St Steel Plate .08 2.22 4.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.69 $10.97 $35.12
Switch 15A Standard Gray on Metal Stud with St Steel Plate S3S3S3
Qty Description Labor Cost Retail
10 #16-#10 Red Wire Nut .00 1.30 2.20
1 Tap-on Box to Stud Clip .02 .84 1.28
1 3G Switch 302 St Steel Plate .10 3.30 6.50
3 3W Gry 15A Stnd Switch w/Ground .60 7.62 15.60
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
3 6" #12 Pigtail .06 .84 7.05
.93 $23.28 $117.13
Switch 15A Standard Gray on Metal Stud with St Steel Plate S4
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 4W Gry 15A Stnd Switch w/Ground .25 9.06 16.78
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.50 $13.12 $35.76
Switch 15A Standard Gray on Metal Stud with St Steel Plate S4S4

Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 Tap-on Box to Stud Clip .02 .84 1.28
2 4W Gry 15A Stnd Switch w/Ground .50 18.12 33.56
1 2G Switch 302 St Steel Plate .08 2.22 4.35
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.79 $24.27 $58.72

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
