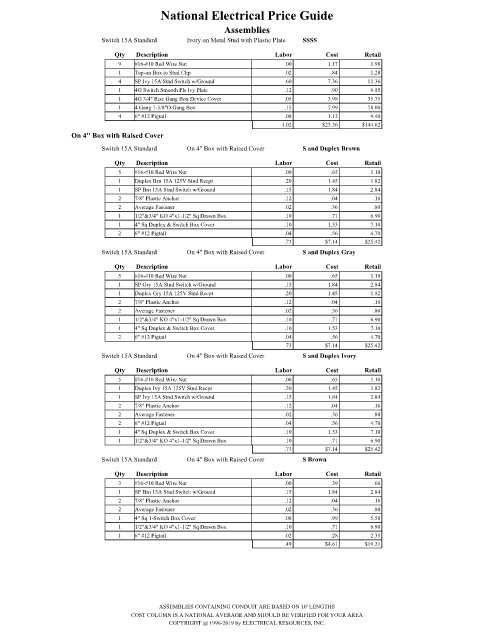

Page 2708 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 15A Standard Ivory on Metal Stud with Plastic Plate SSSS
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 Tap-on Box to Stud Clip .02 .84 1.28
4 SP Ivy 15A Stnd Switch w/Ground .60 7.36 11.36
1 4G Switch Smooth Pls Ivy Plate .12 .90 6.85
1 4G 3/4" Rise Gang Box Device Cover .05 3.98 35.75
1 4 Gang 1-5/8"D Gang Box .15 7.99 78.00
4 6" #12 Pigtail .08 1.12 9.40
1.02 $23.36 $144.62
On 4" Box with Raised Cover
Switch 15A Standard On 4" Box with Raised Cover S and Duplex Brown

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Duplex Brn 15A 125V Stnd Recpt .20 1.45 1.82
1 SP Brn 15A Stnd Switch w/Ground .15 1.84 2.84
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 4" Sq Duplex & Switch Box Cover .10 1.53 7.10
2 6" #12 Pigtail .04 .56 4.70
.73 $7.14 $25.42
Switch 15A Standard On 4" Box with Raised Cover S and Duplex Gray

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 SP Gry 15A Stnd Switch w/Ground .15 1.84 2.84
1 Duplex Gry 15A 125V Stnd Recpt .20 1.45 1.82
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 4" Sq Duplex & Switch Box Cover .10 1.53 7.10
2 6" #12 Pigtail .04 .56 4.70
.73 $7.14 $25.42
Switch 15A Standard On 4" Box with Raised Cover S and Duplex Ivory

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Duplex Ivy 15A 125V Stnd Recpt .20 1.45 1.82
1 SP Ivy 15A Stnd Switch w/Ground .15 1.84 2.84
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
2 6" #12 Pigtail .04 .56 4.70
1 4" Sq Duplex & Switch Box Cover .10 1.53 7.10
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.73 $7.14 $25.42
Switch 15A Standard On 4" Box with Raised Cover S Brown

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 SP Brn 15A Stnd Switch w/Ground .15 1.84 2.84
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq 1-Switch Box Cover .08 .99 5.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.49 $4.61 $19.21

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
