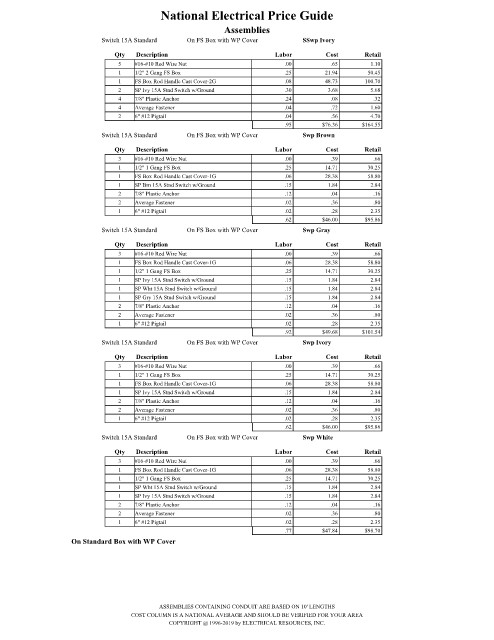

Page 2713 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 15A Standard On FS Box with WP Cover SSwp Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 1/2" 2 Gang FS Box .25 21.94 50.45
1 FS Box Rod Handle Cast Cover-2G .08 48.73 100.70
2 SP Ivy 15A Stnd Switch w/Ground .30 3.68 5.68
4 7/8" Plastic Anchor .24 .08 .32
4 Average Fastener .04 .72 1.60
2 6" #12 Pigtail .04 .56 4.70
.95 $76.36 $164.55
Switch 15A Standard On FS Box with WP Cover Swp Brown

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 FS Box Rod Handle Cast Cover-1G .06 28.38 58.80
1 SP Brn 15A Stnd Switch w/Ground .15 1.84 2.84
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.62 $46.00 $95.86
Switch 15A Standard On FS Box with WP Cover Swp Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 FS Box Rod Handle Cast Cover-1G .06 28.38 58.80
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 SP Ivy 15A Stnd Switch w/Ground .15 1.84 2.84
1 SP Wht 15A Stnd Switch w/Ground .15 1.84 2.84
1 SP Gry 15A Stnd Switch w/Ground .15 1.84 2.84
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.92 $49.68 $101.54
Switch 15A Standard On FS Box with WP Cover Swp Ivory

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 FS Box Rod Handle Cast Cover-1G .06 28.38 58.80
1 SP Ivy 15A Stnd Switch w/Ground .15 1.84 2.84
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.62 $46.00 $95.86
Switch 15A Standard On FS Box with WP Cover Swp White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 FS Box Rod Handle Cast Cover-1G .06 28.38 58.80
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 SP Wht 15A Stnd Switch w/Ground .15 1.84 2.84
1 SP Ivy 15A Stnd Switch w/Ground .15 1.84 2.84
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.77 $47.84 $98.70
On Standard Box with WP Cover

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
