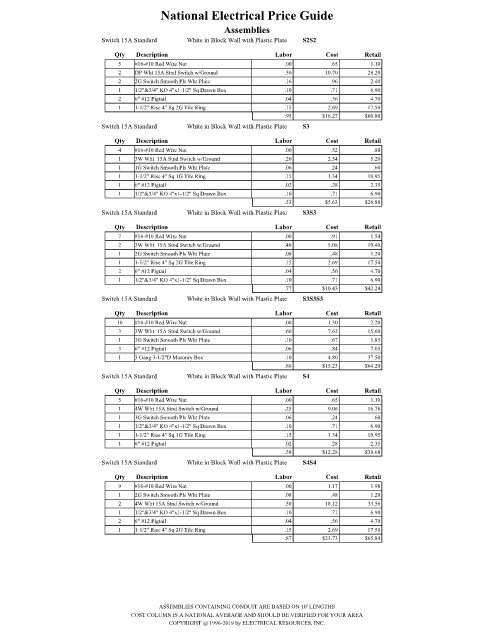

Page 2716 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 15A Standard White in Block Wall with Plastic Plate S2S2
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 DP Wht 15A Stnd Switch w/Ground .50 10.70 28.20
2 2G Switch Smooth Pls Wht Plate .16 .96 2.40
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.95 $16.27 $60.80
Switch 15A Standard White in Block Wall with Plastic Plate S3
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 3W Wht 15A Stnd Switch w/Ground .20 2.54 5.20
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $5.63 $26.88
Switch 15A Standard White in Block Wall with Plastic Plate S3S3
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
2 3W Wht 15A Stnd Switch w/Ground .40 5.08 10.40
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.77 $10.43 $42.24
Switch 15A Standard White in Block Wall with Plastic Plate S3S3S3
Qty Description Labor Cost Retail
10 #16-#10 Red Wire Nut .00 1.30 2.20
3 3W Wht 15A Stnd Switch w/Ground .60 7.62 15.60
1 3G Switch Smooth Pls Wht Plate .10 .67 1.85
3 6" #12 Pigtail .06 .84 7.05
1 3 Gang 3-1/2"D Masonry Box .10 4.80 37.50
.86 $15.23 $64.20
Switch 15A Standard White in Block Wall with Plastic Plate S4
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 4W Wht 15A Stnd Switch w/Ground .25 9.06 16.78
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
.58 $12.28 $38.68
Switch 15A Standard White in Block Wall with Plastic Plate S4S4
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 4W Wht 15A Stnd Switch w/Ground .50 18.12 33.56
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.87 $23.73 $65.84

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
