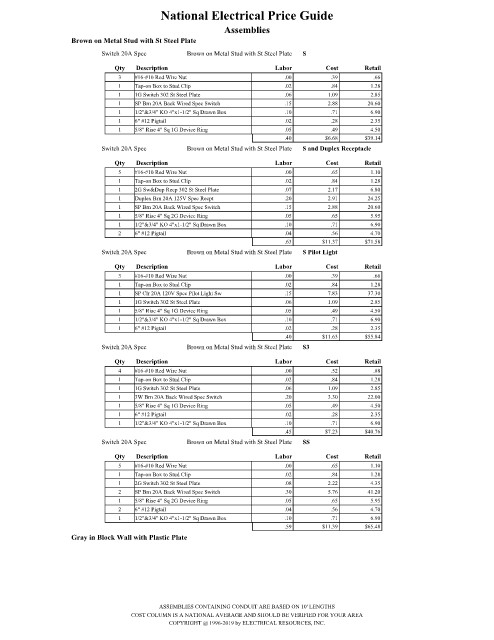

National Electrical Price Guide

Assemblies
Brown on Metal Stud with St Steel Plate
Switch 20A Spec Brown on Metal Stud with St Steel Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 SP Brn 20A Back Wired Spec Switch .15 2.88 20.60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.40 $6.68 $39.14
Switch 20A Spec Brown on Metal Stud with St Steel Plate S and Duplex Receptacle

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G Sw&Dup Recp 302 St Steel Plate .07 2.17 6.80
1 Duplex Brn 20A 125V Spec Recpt .20 2.91 24.25
1 SP Brn 20A Back Wired Spec Switch .15 2.88 20.60
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.63 $11.37 $71.58
Switch 20A Spec Brown on Metal Stud with St Steel Plate S Pilot Light

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 SP Clr 20A 120V Spec Pilot Light Sw .15 7.83 37.30
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.40 $11.63 $55.84
Switch 20A Spec Brown on Metal Stud with St Steel Plate S3
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 3W Brn 20A Back Wired Spec Switch .20 3.30 22.00
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.45 $7.23 $40.76
Switch 20A Spec Brown on Metal Stud with St Steel Plate SS
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G Switch 302 St Steel Plate .08 2.22 4.35
2 SP Brn 20A Back Wired Spec Switch .30 5.76 41.20
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.59 $11.39 $65.48
Gray in Block Wall with Plastic Plate

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
