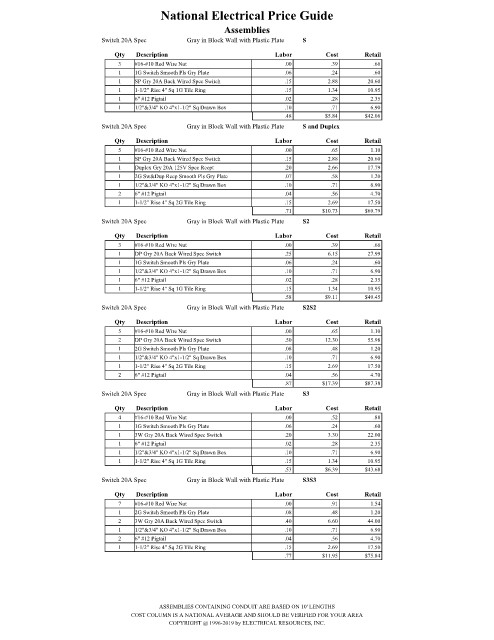

Page 2728 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Spec Gray in Block Wall with Plastic Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Switch Smooth Pls Gry Plate .06 .24 .60
1 SP Gry 20A Back Wired Spec Switch .15 2.88 20.60
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.48 $5.84 $42.06
Switch 20A Spec Gray in Block Wall with Plastic Plate S and Duplex
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 SP Gry 20A Back Wired Spec Switch .15 2.88 20.60
1 Duplex Gry 20A 125V Spec Recpt .20 2.66 17.79
1 2G Sw&Dup Recp Smooth Pls Gry Plate .07 .58 1.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.71 $10.73 $69.79
Switch 20A Spec Gray in Block Wall with Plastic Plate S2
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 DP Gry 20A Back Wired Spec Switch .25 6.15 27.99
1 1G Switch Smooth Pls Gry Plate .06 .24 .60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.58 $9.11 $49.45
Switch 20A Spec Gray in Block Wall with Plastic Plate S2S2
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 DP Gry 20A Back Wired Spec Switch .50 12.30 55.98
1 2G Switch Smooth Pls Gry Plate .08 .48 1.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
.87 $17.39 $87.38
Switch 20A Spec Gray in Block Wall with Plastic Plate S3

Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 1G Switch Smooth Pls Gry Plate .06 .24 .60
1 3W Gry 20A Back Wired Spec Switch .20 3.30 22.00
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.53 $6.39 $43.68
Switch 20A Spec Gray in Block Wall with Plastic Plate S3S3
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 2G Switch Smooth Pls Gry Plate .08 .48 1.20
2 3W Gry 20A Back Wired Spec Switch .40 6.60 44.00
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.77 $11.95 $75.84

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
