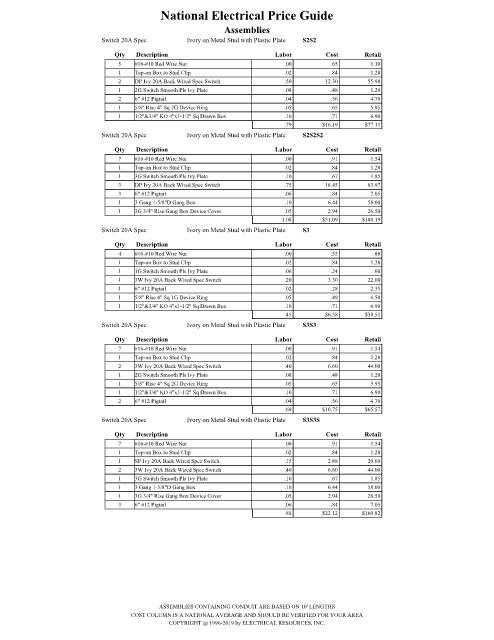

National Electrical Price Guide

Assemblies
Switch 20A Spec Ivory on Metal Stud with Plastic Plate S2S2
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 DP Ivy 20A Back Wired Spec Switch .50 12.30 55.98
1 2G Switch Smooth Pls Ivy Plate .08 .48 1.20
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.79 $16.19 $77.11
Switch 20A Spec Ivory on Metal Stud with Plastic Plate S2S2S2

Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
1 3G Switch Smooth Pls Ivy Plate .10 .67 1.85
3 DP Ivy 20A Back Wired Spec Switch .75 18.45 83.97
3 6" #12 Pigtail .06 .84 7.05
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
1.08 $31.09 $180.19
Switch 20A Spec Ivory on Metal Stud with Plastic Plate S3
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch Smooth Pls Ivy Plate .06 .24 .60
1 3W Ivy 20A Back Wired Spec Switch .20 3.30 22.00
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.45 $6.38 $38.51
Switch 20A Spec Ivory on Metal Stud with Plastic Plate S3S3
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
2 3W Ivy 20A Back Wired Spec Switch .40 6.60 44.00
1 2G Switch Smooth Pls Ivy Plate .08 .48 1.20
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.69 $10.75 $65.57
Switch 20A Spec Ivory on Metal Stud with Plastic Plate S3S3S

Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
1 SP Ivy 20A Back Wired Spec Switch .15 2.88 20.60
2 3W Ivy 20A Back Wired Spec Switch .40 6.60 44.00
1 3G Switch Smooth Pls Ivy Plate .10 .67 1.85
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
3 6" #12 Pigtail .06 .84 7.05
.88 $22.12 $160.82

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
