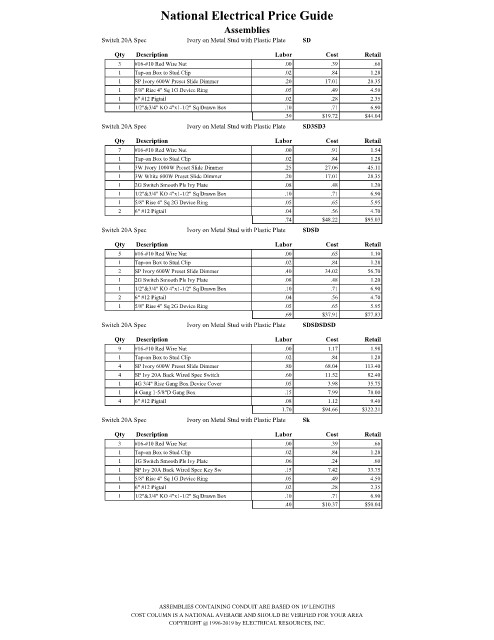

Page 2752 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Spec Ivory on Metal Stud with Plastic Plate SD
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 SP Ivory 600W Preset Slide Dimmer .20 17.01 28.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.39 $19.72 $44.04
Switch 20A Spec Ivory on Metal Stud with Plastic Plate SD3SD3
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
1 3W Ivory 1000W Preset Slide Dimmer .25 27.06 45.11
1 3W White 600W Preset Slide Dimmer .20 17.01 28.35
1 2G Switch Smooth Pls Ivy Plate .08 .48 1.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.74 $48.22 $95.03
Switch 20A Spec Ivory on Metal Stud with Plastic Plate SDSD
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 SP Ivory 600W Preset Slide Dimmer .40 34.02 56.70
1 2G Switch Smooth Pls Ivy Plate .08 .48 1.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
.69 $37.91 $77.83
Switch 20A Spec Ivory on Metal Stud with Plastic Plate SDSDSDSD
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 Tap-on Box to Stud Clip .02 .84 1.28
4 SP Ivory 600W Preset Slide Dimmer .80 68.04 113.40
4 SP Ivy 20A Back Wired Spec Switch .60 11.52 82.40
1 4G 3/4" Rise Gang Box Device Cover .05 3.98 35.75
1 4 Gang 1-5/8"D Gang Box .15 7.99 78.00
4 6" #12 Pigtail .08 1.12 9.40
1.70 $94.66 $322.21
Switch 20A Spec Ivory on Metal Stud with Plastic Plate Sk

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch Smooth Pls Ivy Plate .06 .24 .60
1 SP Ivy 20A Back Wired Spec Key Sw .15 7.42 33.75
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.40 $10.37 $50.04

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
