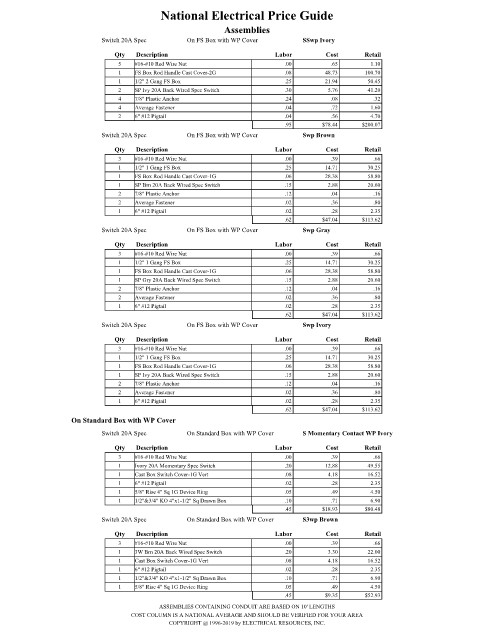

Page 2768 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Spec On FS Box with WP Cover SSwp Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 FS Box Rod Handle Cast Cover-2G .08 48.73 100.70
1 1/2" 2 Gang FS Box .25 21.94 50.45
2 SP Ivy 20A Back Wired Spec Switch .30 5.76 41.20
4 7/8" Plastic Anchor .24 .08 .32
4 Average Fastener .04 .72 1.60
2 6" #12 Pigtail .04 .56 4.70
.95 $78.44 $200.07
Switch 20A Spec On FS Box with WP Cover Swp Brown

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 FS Box Rod Handle Cast Cover-1G .06 28.38 58.80
1 SP Brn 20A Back Wired Spec Switch .15 2.88 20.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.62 $47.04 $113.62
Switch 20A Spec On FS Box with WP Cover Swp Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 FS Box Rod Handle Cast Cover-1G .06 28.38 58.80
1 SP Gry 20A Back Wired Spec Switch .15 2.88 20.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.62 $47.04 $113.62
Switch 20A Spec On FS Box with WP Cover Swp Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 FS Box Rod Handle Cast Cover-1G .06 28.38 58.80
1 SP Ivy 20A Back Wired Spec Switch .15 2.88 20.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.62 $47.04 $113.62
On Standard Box with WP Cover
Switch 20A Spec On Standard Box with WP Cover S Momentary Contact WP Ivory

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Ivory 20A Momentary Spec Switch .20 12.88 49.55
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.45 $18.93 $80.48
Switch 20A Spec On Standard Box with WP Cover S3wp Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 3W Brn 20A Back Wired Spec Switch .20 3.30 22.00
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $9.35 $52.93
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
