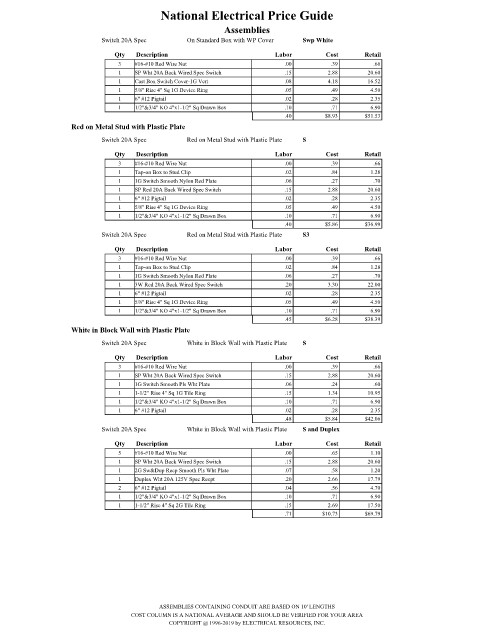

Page 2770 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Spec On Standard Box with WP Cover Swp White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 SP Wht 20A Back Wired Spec Switch .15 2.88 20.60
1 Cast Box Switch Cover-1G Vert .08 4.18 16.52
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.40 $8.93 $51.53
Red on Metal Stud with Plastic Plate
Switch 20A Spec Red on Metal Stud with Plastic Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch Smooth Nylon Red Plate .06 .27 .70
1 SP Red 20A Back Wired Spec Switch .15 2.88 20.60
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.40 $5.86 $36.99
Switch 20A Spec Red on Metal Stud with Plastic Plate S3
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch Smooth Nylon Red Plate .06 .27 .70
1 3W Red 20A Back Wired Spec Switch .20 3.30 22.00
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.45 $6.28 $38.39
White in Block Wall with Plastic Plate
Switch 20A Spec White in Block Wall with Plastic Plate S

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 SP Wht 20A Back Wired Spec Switch .15 2.88 20.60
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.48 $5.84 $42.06
Switch 20A Spec White in Block Wall with Plastic Plate S and Duplex
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 SP Wht 20A Back Wired Spec Switch .15 2.88 20.60
1 2G Sw&Dup Recp Smooth Pls Wht Plate .07 .58 1.20
1 Duplex Wht 20A 125V Spec Recpt .20 2.66 17.79
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.71 $10.73 $69.79

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
