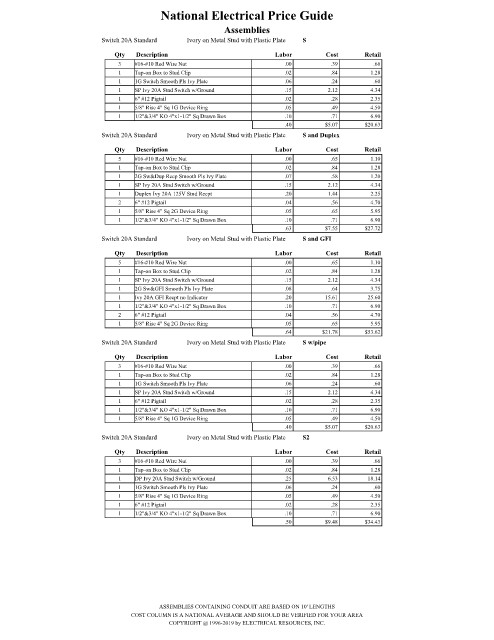

National Electrical Price Guide

Assemblies
Switch 20A Standard Ivory on Metal Stud with Plastic Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch Smooth Pls Ivy Plate .06 .24 .60
1 SP Ivy 20A Stnd Switch w/Ground .15 2.12 4.34
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.40 $5.07 $20.63
Switch 20A Standard Ivory on Metal Stud with Plastic Plate S and Duplex

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G Sw&Dup Recp Smooth Pls Ivy Plate .07 .58 1.20
1 SP Ivy 20A Stnd Switch w/Ground .15 2.12 4.34
1 Duplex Ivy 20A 125V Stnd Recpt .20 1.44 2.25
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.63 $7.55 $27.72
Switch 20A Standard Ivory on Metal Stud with Plastic Plate S and GFI

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 SP Ivy 20A Stnd Switch w/Ground .15 2.12 4.34
1 2G Sw&GFI Smooth Pls Ivy Plate .08 .64 3.75
1 Ivy 20A GFI Recpt no Indicator .20 15.61 25.60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
.64 $21.78 $53.62
Switch 20A Standard Ivory on Metal Stud with Plastic Plate S w/pipe

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch Smooth Pls Ivy Plate .06 .24 .60
1 SP Ivy 20A Stnd Switch w/Ground .15 2.12 4.34
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.40 $5.07 $20.63
Switch 20A Standard Ivory on Metal Stud with Plastic Plate S2
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 DP Ivy 20A Stnd Switch w/Ground .25 6.53 18.14
1 1G Switch Smooth Pls Ivy Plate .06 .24 .60
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.50 $9.48 $34.43

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
