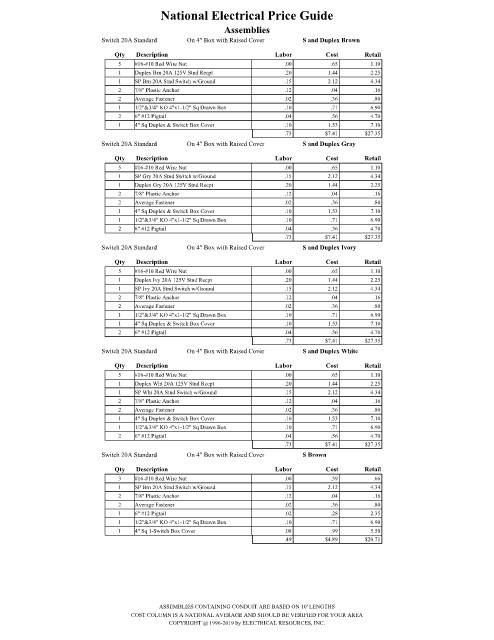

Page 2797 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Standard On 4" Box with Raised Cover S and Duplex Brown
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Duplex Brn 20A 125V Stnd Recpt .20 1.44 2.25
1 SP Brn 20A Stnd Switch w/Ground .15 2.12 4.34
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 4" Sq Duplex & Switch Box Cover .10 1.53 7.10
.73 $7.41 $27.35
Switch 20A Standard On 4" Box with Raised Cover S and Duplex Gray
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 SP Gry 20A Stnd Switch w/Ground .15 2.12 4.34
1 Duplex Gry 20A 125V Stnd Recpt .20 1.44 2.25
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq Duplex & Switch Box Cover .10 1.53 7.10
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.73 $7.41 $27.35
Switch 20A Standard On 4" Box with Raised Cover S and Duplex Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Duplex Ivy 20A 125V Stnd Recpt .20 1.44 2.25
1 SP Ivy 20A Stnd Switch w/Ground .15 2.12 4.34
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 4" Sq Duplex & Switch Box Cover .10 1.53 7.10
2 6" #12 Pigtail .04 .56 4.70
.73 $7.41 $27.35
Switch 20A Standard On 4" Box with Raised Cover S and Duplex White
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Duplex Wht 20A 125V Stnd Recpt .20 1.44 2.25
1 SP Wht 20A Stnd Switch w/Ground .15 2.12 4.34
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq Duplex & Switch Box Cover .10 1.53 7.10
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.73 $7.41 $27.35
Switch 20A Standard On 4" Box with Raised Cover S Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 SP Brn 20A Stnd Switch w/Ground .15 2.12 4.34
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 4" Sq 1-Switch Box Cover .08 .99 5.50
.49 $4.89 $20.71

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
