Page 34 - Smart Solutions # 3 Tre Roda
P. 34

5.
                                                            6.

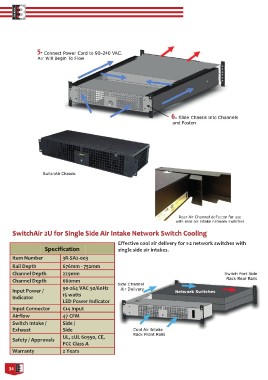

SwitchAir 2U for Single Side Air Intake Network Switch Cooling

             Specification               Effective cool air delivery for 1-2 network switches with
                                         single side air intakes.

Item Number         3R-SA2-003

Rail Depth          676mm - 752mm
Channel Depth       229mm
Channel Depth       660mm
                    90-264 VAC 50/60Hz
Input Power /       15 watts
Indicator           LED Power Indicator
                    C14 Input
Input Connector     47 CFM
Airflow             Side /
Switch Intake /     Side
Exhaust             UL, cUL 60950, CE,
                    FCC Class A
Safety / Approvals  2 Years

Warranty

34
