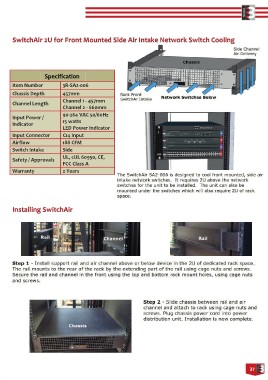

SwitchAir 2U for Front Mounted Side Air Intake Network Switch Cooling

             Specification

Item Number         3R-SA2-006

Chassis Depth       457mm
Channel Length      Channel 1 - 457mm
                    Channel 2 - 660mm
Input Power /       90-264 VAC 50/60Hz
Indicator           15 watts
                    LED Power Indicator
Input Connector     C14 Input
Airflow             188 CFM
Switch Intake       Side
Safety / Approvals  UL, cUL 60950, CE,
                    FCC Class A
Warranty            2 Years

Installing SwitchAir
