Page 42 - Smart Solutions # 3 Tre Roda

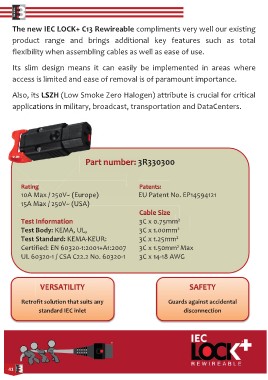

The new IEC LOCK+ C13 Rewireable compliments very well our existing
product range and brings additional key features such as total
flexibility when assembling cables as well as ease of use.

Its slim design means it can easily be implemented in areas where
access is limited and ease of removal is of paramount importance.

Also, its LSZH (Low Smoke Zero Halogen) attribute is crucial for critical
applications in military, broadcast, transportation and DataCenters.

Part number: 3R330300

Rating Patents:

10A Max / 250V~ (Europe) EU Patent No. EP14594121
15A Max / 250V~ (USA)
Cable Size
Test Information 3C x 0.75mm2
Test Body: KEMA, UL, 3C x 1.00mm2
Test Standard: KEMA-KEUR: 3C x 1.25mm2
Certified: EN 60320-1:2001+A1:2007 3C x 1.50mm2 Max
UL 60320-1 / CSA C22.2 No. 60320-1 3C x 14-18 AWG

VERSATILITY SAFETY

Retrofit solution that suits any Guards against accidental
standard IEC inlet disconnection

41
