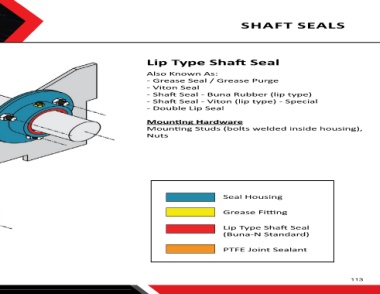

Lip Type Shaft Seal

Also Known As:
Mounting Surface
(Typically Fan Housing) - Grease Seal / Grease Purge
- Viton Seal
- Shaft Seal - Buna Rubber (lip type)
Shaft - Shaft Seal - Viton (lip type) - Special
- Double Lip Seal

Mounting Hardware
Mounting Studs (bolts welded inside housing),
Nuts

Seal Housing

Grease Fitting

Lip Type Shaft Seal
(Buna-N Standard)

PTFE Joint Sealant
