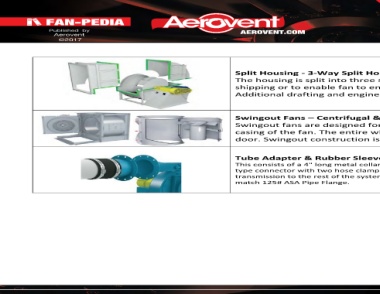

Split Housing - 3-Way Split Housing
The housing is split into three sections up to 180 degrees. This split normally required either for
shipping or to enable fan to enter a specific sized opening.
Additional drafting and engineering time is required for 3-way splits.

Swingout Fans – Centrifugal & Axial Fans
Swingout fans are designed for frequent cleaning and provide full access to the wheel and inner
casing of the fan. The entire wheel/prop, shaft, and bearing assembly is mounted on a large swingout
door. Swingout construction is available for centrifugal, inline centrifugal, and axial fans.

Tube Adapter & Rubber Sleeve w/ Clamps
This consists of a 4" long metal collar and flange which bolts to the blower discharge. A 6" long, 2-ply molded rubber slip-
type connector with two hose clamps connects the adapter to the pipe line and helps to isolate vibration and noise
transmission to the rest of the system. The connector is rated for pressures up to 5 psi and 180°F. Flange bolt patterns
match 125# ASA Pipe Flange.
