FAN-PEDIA MOTOR BASES

Published by
Twin City Fan & Blower Adjustable Type
©2017 TCF.COM

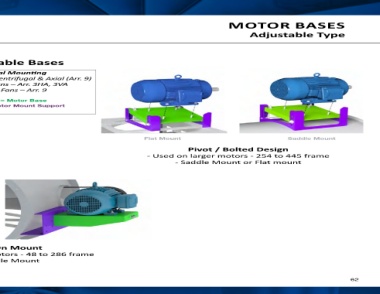

Adjustable Bases

Typical Mounting
- Tubular Fans – Centrifugal & Axial (Arr. 9)
- Plenum Fans – Arr. 3HA, 3VA
- Plug Fans – Arr. 9

Green = Motor Base
Purple = Motor Mount Support

Flat Mount Saddle Mount Flat Mount Saddle Mount
Standard Post Mount Pivot / Bolted Design
- Used on small motors - 48 to 215 frame - Used on larger motors - 254 to 445 frame
- Saddle Mount or Flat Mount - Saddle Mount or Flat mount

Typical Mounting
- Tubeaxial, Vaneaxial,
& Centaxial Fans (Arr. 9)

Green = Motor Base
Purple = Motor Mount Support

Bolt On Mount
- Used on small motors - 48 to 286 frame
- Saddle Mount

62
