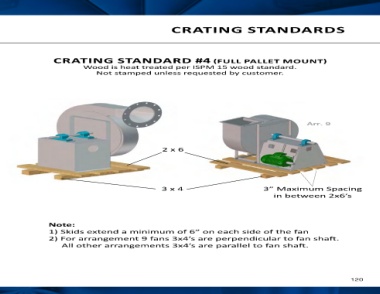

CRATING STANDARD #3 (SKELETON CRATE) CRATING STANDARD #4 (FULL PALLET MOUNT)
Wood is heat treated per ISPM 15 wood standard. Wood is heat treated per ISPM 15 wood standard.
Not stamped unless requested by customer. Not stamped unless requested by customer.

Center verticals only required for lengths over 5’

Arr. 9

2 x 6

3 x 4 3” Maximum Spacing
in between 2x6’s

Note:
1) Skids extend a minimum of 6” on each side of the fan
2x4 BASE 1x4 FRAME
Note: Use 1x4’s for Note: Use 2x4’s Corners for 2) For arrangement 9 fans 3x4’s are perpendicular to fan shaft.
lengths under 4’ lengths over 5’ All other arrangements 3x4’s are parallel to fan shaft.
