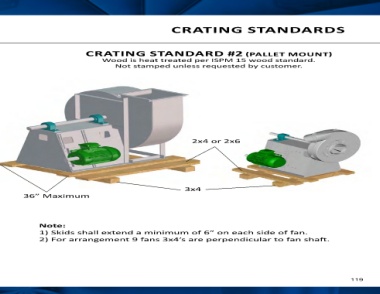

CRATING STANDARD #1 (SKID MOUNT) CRATING STANDARD #2 (PALLET MOUNT)
Wood is heat treated per ISPM 15 wood standard. Wood is heat treated per ISPM 15 wood standard.
Not stamped unless requested by customer. Not stamped unless requested by customer.

3 x 4
2x4 or 2x6

3x4
36” Maximum

Note:
1) Skids shall extend a minimum of 6” on each side of fan.
2) For arrangement 9 fans 3x4’s are perpendicular to fan shaft.

2x6
Optional style for contract hauls

119
