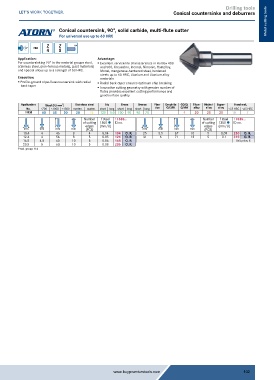

P. 102
Drilling tools
Conical countersinks and deburrers
Conical countersink, 90°, solid carbide, multi-flute cutter Metal cutting tools
For universal use up to 63 HRC
Z Z HA
HM
4 5
Application: Advantage:
For countersinking 90° in the material groups steel, Excellent service life characteristics in Hardox 400
stainless steel, (non-ferrous metals), (cast materials) and 500, Creusabro, Inconel, Nimonic, Hastelloy,
and special alloys up to a strength of 63 HRC. Monel, manganese-hardened steel, hardened
steels up to 60 HRC, titanium and titanium alloy
Execution: materials
Profile-ground tripe-flute countersink with radial Radial back taper ensures optimum chip breaking
back taper Innovative cutting geometry with greater number of
flutes provides excellent cutting performance and
good surface quality
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11535 60 50 30 20 15 120 150 100 90 90 70 4 20 20 20 10 7
Number f steel 11535... Number f steel 11535...
of cutting 1300 ID no. of cutting 1300 ID no.
edges (mm/U) edges (mm/U)
mm mm mm mm (PCS) mm mm mm mm (PCS)
10.4 4 46 8 4 0.04 104 O. R. 25 5.5 67 10 5 0.09 250 O. R.
12.4 4 56 8 5 0.05 124 O. R. 31 6 71 12 5 0.1 310 O. R.
16.5 4.5 60 10 5 0.06 165 O. R. Unit price, €
20.5 5 63 10 5 0.08 205 O. R.
Prod. group 114
