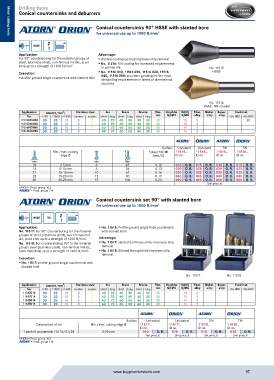

Drilling tools
Conical countersinks and deburrers

Conical countersinks 90° HSSE with slanted bore
for universal use up to 1000 N/mm 2
Metal cutting tools
Metal cutting tools
Z HA
HSSE
1
Application: Advantage:
For 90° counterboring for the material groups of ƒ slanted continuous hole improves chip removal
steel, (stainless steel), non-ferrous metals, (cast ƒ No. 11516: TiN coating for increased requirements
iron) up to a strength of 1300 N/mm . 2 in service life No. 11515
Execution: ƒ No. 11516 010, 11516 020, 11516 030, 11516 HSSE
ƒ profile-ground single countersink with slanted hole 040, 11516 050: precision grinding for the most
demanding requirements in terms of dimensional
accuracy

No. 11516
HSSE, TiN-coated
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11515010-050 30 20 10 8 7 40 70 60 50 40 30 30 15 8 30
11515015-055 30 20 10 8 7 40 70 60 50 40 30 30 15 8
11516010-050 30 20 10 8 7 40 70 60 50 40 30 30 15 8
11516015-055 30 20 10 8 7 40 70 60 50 40 30 30 15 8

Surface Uncoated Uncoated TiN TiN
Min./max. cutting f steel 700 ˜ 11515... 11515... 11516... 11516...
edge Ø (mm/U) ID no. ID no. ID no. ID no.
mm mm mm
10 2-5 mm 6 45 0.12 010 O. R. 015 O. R. 010 O. R. 015 O. R.
14 5-10 mm 6 56 0.13 020 O. R. 025 O. R. 020 O. R. 025 O. R.
21 10-15 mm 10 67 0.16 030 O. R. 035 O. R. 030 O. R. 035 O. R.
28 15-20 mm 12 90 0.19 040 O. R. 045 O. R. 040 O. R. 045 O. R.
35 20-25 mm 15 106 0.23 050 O. R. 055 O. R. 050 O. R. 055 O. R.
Unit price, €
ORION = Prod. group 103
a = Prod. group 114
Conical countersink set 90° with slanted bore
for universal use up to 1000 N/mm 2

Z HA
HSSE TiN
1
Application: ƒ No. 11518: Profile-ground single flute countersink
No. 11517: For 90° counterboring for the material with slanted bore
groups of steel, (stainless steel), non-ferrous met-
als, (cast iron) up to a strength of 1300 N/mm . 2 Advantage:
No. 11518: For countersinking 90° in the material ƒ No. 11517: slanted continuous hole improves chip
groups steel (stainless steel), non-ferrous metals, removal
(cast materials) up to a strength of 1300 N/mm . 2 ƒ No. 11518: Slanted through hole improves chip
removal
Execution:
ƒ No. 11517: profile-ground single countersink with
slanted hole
No. 11517 No. 11518

Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11517010 30 20 10 8 7 40 70 60 50 40 30 30 15 8
11517015 30 20 10 8 7 40 70 60 50 40 30 30 15 8
11518010 30 20 10 8 7 40 70 60 50 40 30 30 15 8
11518015 30 20 10 8 7 40 70 60 50 40 30 30 15 8

Surface Uncoated Uncoated TiN TiN
Composition of set Min./max. cutting edge Ø 11517... 11517... 11518... 11518...
ID no. ID no. ID no. ID no.
1 each of countersink 10/14/21/28 2-20 mm 010 O. R. 015 O. R. 010 O. R. 015 O. R.
Set price, € Unit price, € Set price, € Unit price, €
ORION = Prod. group 103
a = Prod. group 114
