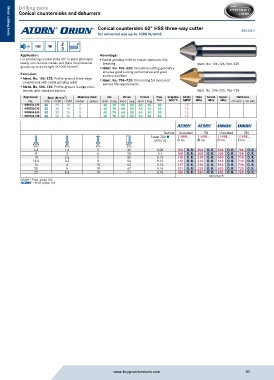

Page 93 - Buy Premium Tools ATORN Catalogue

Drilling tools
Conical countersinks and deburrers

Conical countersink 60° HSS three-way cutter
for universal use up to 1000 N/mm2 DIN 334 C
Metal cutting tools
Metal cutting tools
Z HA
HSS TiN
3
Application: Advantage:
For producing countersinks 60° in steel (stainless ƒ Radial grinding relief to ensure optimum chip
steel), non-ferrous metals and (cast iron) material breaking Ident. No. 106–126, 506–525
groups up to a strength of 1000 N/mm . 2 ƒ Ident. No. 106–225: Innovative cutting geometry
Execution: ensures good cutting performance and good
surface qualities
ƒ Ident. No. 106–225: Profile-ground three-edge ƒ Ident. No. 706–725: TiN coating for increased
countersink with radial grinding relief service life requirements
ƒ Ident. No. 506–725: Profile-ground 3-edge coun-
tersink with standard section Ident. No. 206–225, 706–725
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11498106-126 30 20 10 8 40 70 60 50 40 30 30 15
11498206-225 30 20 10 8 40 70 60 50 40 30 30 15
11498506-525 30 20 10 8 40 70 60 50 40 30 30 15
11498706-725 30 20 10 8 40 70 60 50 40 30 30 15

Surface Uncoated TiN Uncoated TiN
f steel 700 ˜ 11498... 11498... 11498... 11498...
(mm/U) ID no. ID no. ID no. ID no.
mm mm mm mm
6.3 1.6 5 45 0.08 106 O. R. 206 O. R. 506 O. R. 706 O. R.
8 2 6 50 0.1 108 O. R. 208 O. R. 508 O. R. 708 O. R.
10 2.5 6 50 0.12 110 O. R. 210 O. R. 510 O. R. 710 O. R.
12.5 3.2 8 56 0.13 112 O. R. 212 O. R. 512 O. R. 712 O. R.
16 4 10 63 0.14 117 O. R. 216 O. R. 516 O. R. 716 O. R.
20 5 10 67 0.16 121 O. R. 220 O. R. 520 O. R. 720 O. R.
25 6.3 10 71 0.18 126 O. R. 225 O. R. 525 O. R. 725 O. R.
Unit price, €
ORION = Prod. group 103
a = Prod. group 114
