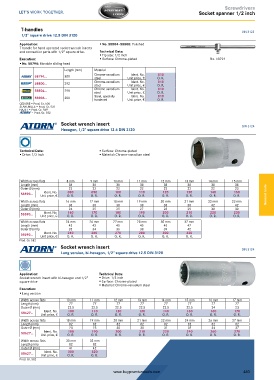

Page 483 - Buy Premium Tools ATORN Catalogue

Screwdrivers
Socket spanner 1/2 inch

T-handles DIN 3122
1/2” square drive 12.5 DIN 3120

Application: ƒ No. 58804–58808: Polished
T-handle for hand-operated socket wrench inserts
and connection parts with 1/2” square drive. Technical Data:
ƒ Tip size: 1/2 inch
Execution: ƒ Surface: Chrome-plated No. 58794
ƒ No. 58794: Movable sliding head
Length (mm) Material
010
Ident. No.
58794... 300 Chrome-vanadium Unit price, € O. R.
steel
010
Ident. No.
58800... 292 Chrome-vanadium Unit price, € O. R.
steel
010
Ident. No.
58804... 298 Chrome-vanadium Unit price, € O. R.
steel
010
Ident. No.
58808... 300 Steel, specially Unit price, € O. R.
hardened
GEDORE = Prod. Gr. 530
STAHLWILLE = Prod. Gr. 531
HAZET = Prod. Gr. 569
a = Prod. Gr. 582
Socket wrench insert DIN 3124
Hexagon, 1/2” square drive 12.5 DIN 3120
Technical Data: ƒ Surface: Chrome-plated
ƒ Drive: 1/2 inch ƒ Material: Chrome-vanadium steel

Width across flats 8 mm 9 mm 10 mm 11 mm 12 mm 13 mm 14 mm 15 mm
Length (mm) 38 38 38 38 38 38 38 38
Outer Ø (mm) 22 22 22 22 22 22 22 23
080
090
Ident. No.
140
120
110
130
100
150
58590... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. General tools
Width across flats 16 mm 17 mm 18 mm 19 mm 20 mm 21 mm 22 mm 23 mm
Length (mm) 38 38 38 38 38 38 42 42
Outer Ø (mm) 24 25 25 27 28 29 30 30
170
160
220
210
230
200
180
190
Ident. No.
58590... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R.
Width across flats 24 mm 26 mm 27 mm 28 mm 30 mm 32 mm
Length (mm) 42 42 45 45 45 47
Outer Ø (mm) 32 34 36 38 39 42
300
280
270
260
320
240
Ident. No.
58590... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R.
Prod. Gr. 582
Socket wrench insert
Long version, bi-hexagon, 1/2” square drive 12.5 DIN 3120 DIN 3124
Application: Technical Data:
Socket wrench insert with bi-hexagon and 1/2” ƒ Drive: 1/2 inch
square drive ƒ Surface: Chrome-plated
ƒ Material: Chrome-vanadium steel
Execution:
ƒ Long version
Width across flats 10 mm 11 mm 12 mm 13 mm 14 mm 15 mm 16 mm 17 mm
Length (mm) 77 77 77 77 77 77 77 77
Outer Ø (mm) 22.5 22.5 22.5 22.5 22.5 22.5 24 23
130
110
100
170
160
Ident. No.
120
150
58627... Unit price, € O. R. O. R. O. R. O. R. 140 O. R. O. R. O. R.
O. R.
Width across flats 18 mm 19 mm 20 mm 21 mm 22 mm 24 mm 26 mm 27 mm
Length (mm) 82 82 82 82 82 82 82 82
Outer Ø (mm) 24 25 30 30 31 32 34 37
190
180
270
260
240
210
200
Ident. No.
58627... Unit price, € O. R. O. R. O. R. O. R. 220 O. R. O. R. O. R.
O. R.
Width across flats 30 mm 32 mm
Length (mm) 82 82
Outer Ø (mm) 41 42
Ident. No.
300
320
58627... Unit price, € O. R. O. R.
Prod. Gr. 582
