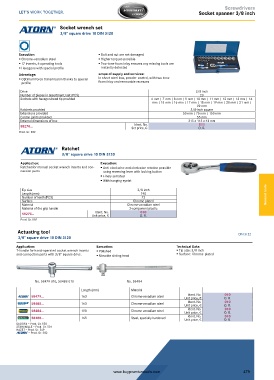

Page 479 - Buy Premium Tools ATORN Catalogue

Screwdrivers
Socket spanner 3/8 inch

Socket wrench set
3/8” square drive 10 DIN 3120

Execution: ƒ Bolt and nut are not damaged
ƒ Chrome-vanadium steel ƒ Higher torques possible
ƒ 17 inserts, 6 operating tools ƒ Two-tone foam inlay ensures any missing tools are
ƒ Hexagons with special profile instantly detected
Advantage: scope of supply and services:
ƒ Optimum force transmission thanks to special In sheet steel box, powder-coated, with two-tone
profile foam inlay and removable recesses
Drive 3/8 inch
Number of pieces in assortment/set (PCS) 23
Sockets with hexagon-head tip provided 6 mm | 7 mm | 8 mm | 9 mm | 10 mm | 11 mm | 12 mm | 13 mm | 14
mm | 15 mm | 16 mm | 17 mm | 18 mm | 19 mm | 20 mm | 21 mm |
22 mm
Ratchets provided 3/8-inch square
Extensions provided 50 mm | 75 mm | 150 mm
Cardan joints provided 55 mm
External dimensions of box 315 x 115 x 43 mm
011
Ident. No.
58278... Set price, € O. R.
Prod. Gr. 582

Ratchet
3/8” square drive 10 DIN 3120
Application: Execution:
Ratchet for manual socket wrench inserts and con- ƒ Anti-clockwise and clockwise rotation possible
nection parts using reversing lever with locking button
ƒ Finely serrated
ƒ With hanging eyelet

Tip size 3/8 inch
Length (mm) 190 General tools
Number of teeth (PCS) 72
Surface Chrome-plated
Material Chrome-vanadium steel
Material of the grip handle 2-component plastic
010
Ident. No.
58275... Unit price, € O. R.
Prod. Gr. 582
Actuating tool DIN 3122
3/8” square drive 10 DIN 3120

Application: Execution: Technical Data:
T-handle for hand-operated socket wrench inserts ƒ Polished ƒ Tip size: 3/8 inch
and connection parts with 3/8” square drive. ƒ Movable sliding head ƒ Surface: Chrome-plated

No. 58479 010, 58488 010 No. 58484
Length (mm) Material
Ident. No.
58479... 163 Chrome-vanadium steel Unit price, € 010
O. R.
Ident. No.
58480... 163 Chrome-vanadium steel Unit price, € 010
O. R.
Ident. No.
58484... 198 Chrome-vanadium steel Unit price, € 010
O. R.
Ident. No.
58488... 165 Steel, specially hardened Unit price, € 010
O. R.
GEDORE = Prod. Gr. 530
STAHLWILLE = Prod. Gr. 531
HAZET = Prod. Gr. 569
a = Prod. Gr. 582

www.buypremiumtools.com 479
