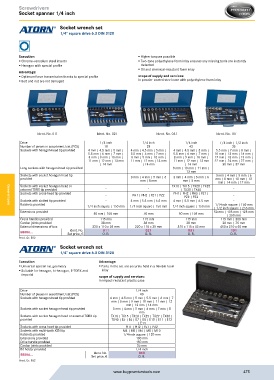

Page 475 - Buy Premium Tools ATORN Catalogue

Screwdrivers
Socket spanner 1/4 inch

Socket wrench set
1/4” square drive 6.3 DIN 3120

Execution: ƒ Higher torques possible
ƒ Chrome-vanadium steel inserts ƒ Two-tone polyethylene foam inlay ensures any missing tools are instantly
ƒ Hexagon with special profile detected
ƒ Oil and chemical-resistant foam inlay
Advantage:
ƒ Optimum force transmission thanks to special profile scope of supply and services:
ƒ Bolt and nut are not damaged In powder-coated steel case with polyethylene foam inlay

Ident. No. 011 Ident. No. 021 Ident. No. 031 Ident. No. 101

Drive 1/4 inch 1/4 inch 1/4 inch 1/4 inch | 1/2 inch
Number of pieces in assortment/set (PCS) 18 28 42 35
Sockets with hexagon-head tip provided 4 mm | 4.5 mm | 5 mm | 4 mm | 4.5 mm | 5 mm | 4 mm | 4.5 mm | 5 mm | 5.5 mm | 7 mm | 8 mm |
5.5 mm | 6 mm | 7 mm | 5.5 mm | 6 mm | 7 mm | 5.5 mm | 6 mm | 7 mm | 10 mm | 13 mm | 16 mm |
8 mm | 9 mm | 10 mm | 8 mm | 9 mm | 10 mm | 8 mm | 9 mm | 10 mm | 17 mm | 18 mm | 19 mm |
11 mm | 12 mm | 13 mm 11 mm | 12 mm | 13 mm 11 mm | 12 mm | 13 mm 22 mm | 24 mm | 27 mm |
| 14 mm | 14 mm | 14 mm 30 mm | 32 mm
Long sockets with hexagon-head tip provided - - 8 mm | 10 mm | 11 mm | -
13 mm
Sockets with socket hexagon-head tip 3 mm | 4 mm | 5 mm | 6 3 mm | 4 mm | 5 mm | 6 3 mm | 4 mm | 5 mm | 6
provided - mm | 8 mm mm | 8 mm mm | 8 mm | 10 mm | 12
mm | 14 mm | 17 mm
Sockets with socket hexagon head or TX10 | TX15 | TX20 | TX25
external TORX tip provided - - | TX30 | TX40 -
Sockets with cross-head tip provided - PH1 | PH2 | PZ1 | PZ2 PH1 | PH2 | PH3 | PZ1 | -
PZ2 | PZ3
Sockets with slotted tip provided - 4 mm | 5.5 mm | 6.5 mm 4 mm | 5.5 mm | 6.5 mm -
1/4-inch square | 150 mm
Ratchets provided 1/4-inch square | 150 mm 1/4-inch square | 150 mm 1/4-inch square | 150 mm | 1/2-inch square | 255 mm
General tools
Extensions provided 50 mm | 105 mm 50 mm 50 mm | 105 mm 50 mm | 105 mm | 125 mm
| 250 mm
Cross handles provided 115 mm 115 mm 115 mm 115 mm | 300 mm
Cardan joints provided 38 mm 38 mm 38 mm 38 mm | 75 mm
External dimensions of box 220 x 110 x 35 mm 220 x 110 x 35 mm 315 x 115 x 43 mm 450 x 210 x 50 mm
021
101
031
011
Ident. No.
58006... Set price, € O. R. O. R. O. R. O. R.
Prod. Gr. 582
Socket wrench set
1/4” square drive 6.3 DIN 3120
Execution: Advantage:
ƒ Universal special nut geometry ƒ Parts in the set are securely held in a flexible foam
ƒ Suitable for hexagon, bi-hexagon, E-TORX and inlay
imperial scope of supply and services:
In impact-resistant plastic case
Drive 1/4 inch
Number of pieces in assortment/set (PCS) 40
Sockets with hexagon-head tip provided 4 mm | 4.5 mm | 5 mm | 5.5 mm | 6 mm | 7
mm | 8 mm | 9 mm | 10 mm | 11 mm | 12
mm | 13 mm | 14 mm
Sockets with socket hexagon-head tip provided 3 mm | 4 mm | 5 mm | 6 mm | 7 mm | 8
mm
Sockets with socket hexagon head or external TORX tip TX10 | TX15 | TX20 | TX25 | TX27 | TX30 |
provided TX40 | E5 | E6 | E7 | E8 | E10 | E11 | E12
| E14
Sockets with cross-head tip provided PH1 | PH2 | PZ1 | PZ2
Sockets with multi-tooth XZN tip M4 | M5 | M6 | M8 | M10
Ratchets provided 1/4-inch square | 120 mm
Extensions provided 100 mm
Drive handle provided 150 mm
Cardan joints provided 35 mm
Bit holder provided 1/4 inch
040
Ident. No.
58006... Set price, € O. R.
Prod. Gr. 582
