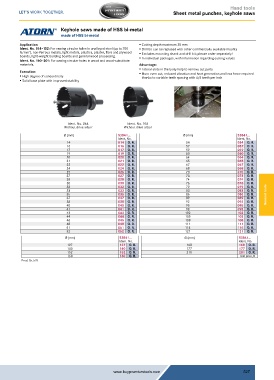

Page 527 - Buy Premium Tools ATORN Catalogue

Hand tools
Sheet metal punches, keyhole saws

Keyhole saws made of HSS bi-metal
made of HSS bi-metal

Application: ƒ Cutting depth maximum 38 mm
Ident. No. 014–152: For sawing circular holes in unalloyed steel (up to 700 ƒ Drill bit can be replaced with other commercially available mounts
N/mm ), non-ferrous metals, light metals, plastics, plaster, fibre and plywood ƒ Excludes mounting shank and drill bit; please order separately!
2
boards, light-weight building boards and general wood processing. ƒ In individual packages, with information regarding cutting values
Ident. No. 160–201: For sawing circular holes in wood and wood-substitute
materials. Advantage:
ƒ Lateral slots in the body help to remove cut parts
Execution: ƒ More even cut, reduced vibration and heat generation and less force required
ƒ High degree of concentricity thanks to variable teeth spacing with 4/6 teeth per inch
ƒ Solid base plate with improved stability

Ident. No. 064 Ident. No. 108
Without drive arbor Without drive arbor
Ø (mm) 53841... Ø (mm) 53841...
Ident. No. Ident. No.
14 014 O. R. 54 054 O. R.
16 016 O. R. 57 057 O. R.
17 017 O. R. 59 059 O. R.
19 019 O. R. 60 060 O. R.
20 020 O. R. 64 064 O. R.
21 021 O. R. 65 065 O. R.
22 022 O. R. 67 067 O. R.
24 024 O. R. 68 068 O. R.
25 025 O. R. 70 070 O. R.
27 027 O. R. 73 073 O. R.
29 029 O. R. 74 074 O. R.
30 030 O. R. 76 076 O. R.
32 032 O. R. 79 079 O. R.
33 033 O. R. 83 083 O. R.
35 035 O. R. 86 086 O. R. General tools
37 037 O. R. 89 089 O. R.
38 038 O. R. 92 092 O. R.
40 040 O. R. 95 095 O. R.
41 041 O. R. 98 098 O. R.
43 043 O. R. 102 102 O. R.
44 044 O. R. 105 105 O. R.
46 046 O. R. 108 108 O. R.
48 048 O. R. 111 111 O. R.
51 051 O. R. 114 114 O. R.
52 052 O. R. 121 121 O. R.
Ø (mm) 53841... Ø (mm) 53841...
Ident. No. Ident. No.
127 127 O. R. 168 168 O. R.
140 140 O. R. 177 177 O. R.
152 152 O. R. 210 201 O. R.
160 160 O. R. Unit price, €
Prod. Gr. 528

www.buypremiumtools.com 527
