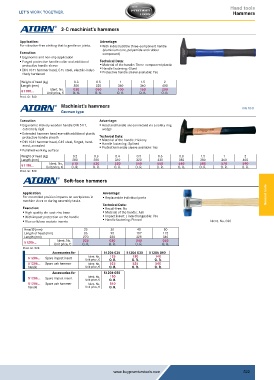

Page 522 - Buy Premium Tools ATORN Catalogue

Hand tools
Hammers

3-C machinist’s hammers

Application: Advantage:
For vibration-free striking that is gentle on joints. ƒ With indestructible three-component handle
Execution: (aluminium core, polyamide and rubber
component)
ƒ Ergonomic and non-slip application
ƒ Forged protective handle collar and additional Technical Data:
protective handle sleeve ƒ Material of the handle: Three-component plastic
ƒ DIN 1041 hammer head, C45 steel, electric-induc- ƒ Handle fastening: Glued
ƒ Protective handle sleeve available: Yes
tively hardened
Weight of head (kg) 0.3 0.5 1 1.5 2
Length (mm) 300 320 360 360 400
030
050
150
200
100
Ident. No.
51180... Unit price, € O. R. O. R. O. R. O. R. O. R.
Prod. Gr. 520
Machinist’s hammers DIN 1041
German type
Execution: Advantage:
ƒ Ergonomic Hickory wooden handle DIN 5111, ƒ Head and handle are connected via a safety ring
extremely rigid wedge
ƒ Extended hammer head eye with additional plastic
protective handle sheath Technical Data:
ƒ DIN 1041 hammer head, C45 steel, forged, hard- ƒ Material of the handle: Hickory
ƒ Handle fastening: Splined
ened, annealed ƒ Protective handle sleeve available: Yes
ƒ Polished working surface
Weight of head (kg) 0.2 0.3 0.4 0.5 0.6 0.8 1.5 1 2
Length (mm) 280 300 310 320 330 350 380 360 400
590
Ident. No.
560
570
510
530
520
550
580
540
51188... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R. O. R.
Prod. Gr. 520
Soft-face hammers
Application: Advantage:
For controlled position impacts on workpieces in ƒ Replaceable individual parts General tools
machine vices or during assembly tasks.
Technical Data:
Execution: ƒ Recoil-free: No
ƒ High-quality die-cast zinc base ƒ Material of the handle: Ash
ƒ With impact protection on the handle ƒ Impact insert | interchangeable: Yes
ƒ Blue cellulose acetate inserts ƒ Handle fastening: Pinned Ident. No. 030
Head Ø (mm) 25 30 40 50
Length of head (mm) 86 95 107 115
Length (mm) 270 280 325 340
030
025
050
040
Ident. No.
51206... Unit price, € O. R. O. R. O. R. O. R.
Prod. Gr. 520
Accessories for 51206 025 51206 030 51206 040
140
125
130
Ident. No.
51206... Spare impact insert Unit price, € O. R. O. R. O. R.
51206... Spare ash hammer Ident. No. 525 525 540
handle Unit price, € O. R. O. R. O. R.
Accessories for 51206 050
150
Ident. No.
51206... Spare impact insert Unit price, € O. R.
51206... Spare ash hammer Ident. No. 540
handle Unit price, € O. R.

www.buypremiumtools.com 522
