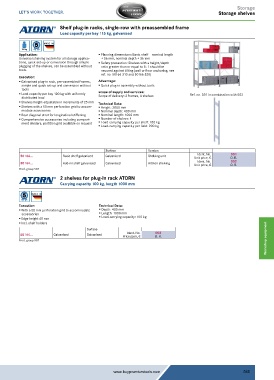

Page 565 - Buy Premium Tools ATORN Catalogue

Storage
Storage shelves

Shelf plug-in racks, single-row with preassembled frame
Load capacity per bay 115 kg, galvanised

100 kg
Application: ƒ Planning dimensions: Basic shelf = nominal length
Universal shelving system for all storage applica- + 56 mm, nominal depth + 36 mm
tions, quick set-up or conversion through simple ƒ Safety precaution: Shelves with a height/depth
plugging of the shelves, can be assembled without ratio greater than or equal to 5: 1 should be
tools. secured against tilting (wall or floor anchoring, see
Execution: ref. no. 50166 310 and 50166 320)
ƒ Galvanised plug-in rack, pre-assembled frames, Advantage:
simple and quick set-up and conversion without ƒ Quick plug-in assembly without tools
tools
ƒ Load capacity per bay 100 kg with uniformly scope of supply and services: Ref. no. 001 in combination with 002
distributed load Scope of delivery: 2 frames, 4 shelves
ƒ Shelves height-adjustable in increments of 25 mm Technical Data:
ƒ Shelves with a 50 mm perforation grid to accom- ƒ Height: 2000 mm
modate accessories ƒ Nominal depth: 400 mm
ƒ Rear diagonal strut for longitudinal stiffening ƒ Nominal length: 1000 mm
ƒ Comprehensive accessories including compart- ƒ Number of shelves: 4
ment dividers, partition grid available on request ƒ Load-carrying capacity per shelf: 100 kg
ƒ Load-carrying capacity per field: 900 kg

Surface Version
001
Ident. No.
50164... Basic shelf galvanised Galvanised Shelving unit Unit price, € O. R.
002
Ident. No.
50164... Add-on shelf galvanised Galvanised Add-on shelving Unit price, € O. R.
Prod. group 587
2 shelves for plug-in rack ATORN
Carrying capacity 100 kg, length 1000 mm

Execution: Technical Data:
ƒ With a 50 mm perforation grid to accommodate ƒ Depth: 400 mm
accessories ƒ Length: 1000 mm
ƒ Edge height 40 mm ƒ Load-carrying capacity: 100 kg
ƒ Incl. shelf holders
Surface
Ident. No.
003
50164... Galvanised Galvanised Price/pair, € O. R.
Prod. group 587 Workshop equipment
