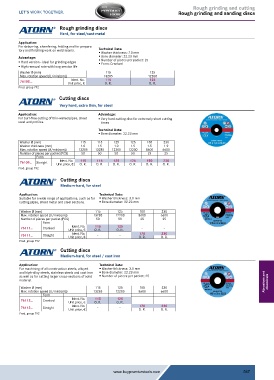

Page 567 - Buy Premium Tools ATORN Catalogue

Rough grinding and cutting
Rough grinding and sanding discs

Rough grinding discs
Hard, for steel/cast metal
Application:
For deburring, chamfering, fettling and for prepara- Technical Data:
tory and finishing work on weld seams.
ƒ Washer thickness: 7.0 mm
Advantage: ƒ Bore diameter: 22.23 mm
ƒ Hard version - ideal for grinding edges ƒ Number of pieces per packet: 25
ƒ Form: Cranked
ƒ High removal rate with long service life
Washer Ø (mm) 115 125
Max. rotation speed (U/min(rpm)) 13285 12200
Ident. No.
115
125
76100... Unit price, € O. R. O. R.
Prod. group 792
Cutting discs
Very hard, extra thin, for steel
Application: Advantage:
For burr-free cutting of thin-walled pipes, sheet ƒ Very hard cutting disc for extremely short cutting
steel and profiles. times
Technical Data:
ƒ Bore diameter: 22.23 mm
Washer Ø (mm) 115 115 125 125 180 230
Washer thickness (mm) 1.0 1.5 1.0 1.5 1.5 1.9
Max. rotation speed (U/min(rpm)) 13285 13285 12200 12200 8600 6600
Number of pieces per packet (PCS) 50 50 50 50 25 25
Form
Ident. No.
180
126
230
116
125
76109... Straight Unit price, € 115 O. R. O. R. O. R. O. R. O. R.
O. R.
Prod. group 792
Cutting discs
Medium-hard, for steel
Application: Technical Data:
Suitable for a wide range of applications, such as for ƒ Washer thickness: 3.0 mm
cutting pipes, sheet metal and steel sections. ƒ Bore diameter: 22.23 mm
Washer Ø (mm) 115 125 180 230
Max. rotation speed (U/min(rpm)) 13285 12200 8600 6600
Number of pieces per packet (PCS) 50 50 25 25
Form
Ident. No.
115
125
76111... Cranked Unit price, € O. R. O. R. - -
178
230
Ident. No.
76111... Straight Unit price, € - - O. R. O. R.
Prod. group 792
Cutting discs
Medium-hard, for steel / cast iron
Application: Technical Data:
For machining of all construction steels, alloyed ƒ Washer thickness: 3.0 mm
and high-alloy steels, stainless steels and cast iron ƒ Bore diameter: 22.23 mm
as well as for cutting larger cross-sections of solid ƒ Number of pieces per packet: 25
material. Abrasives and chemicals
Washer Ø (mm) 115 125 180 230
Max. rotation speed (U/min(rpm)) 13285 12200 8600 6600
Form
115
125
Ident. No.
76112... Cranked Unit price, € O. R. O. R. - -
230
178
Ident. No.
76112... Straight Unit price, € - - O. R. O. R.
Prod. group 792
