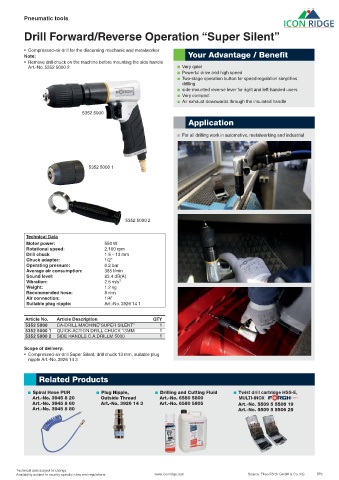

Page 570 - Icon Ridge Maintenance & Service Catalog

Pneumatic tools

Drill Forward/Reverse Operation “Super Silent”

• Compressed-air drill for the discerning mechanic and metalworker
Note: Your Advantage / Benefit
• Remove drill chuck on the machine before mounting the side handle
Art.-No. 5352 5000 2 Very quiet
Powerful drive and high speed
Two-stage operation button for speed regulation simplifies
drilling
side-mounted reverse lever for right and left-handed users
Very compact
Air exhaust downwards through the insulated handle
5352 5000
Application

For all drilling work in automotive, metalworking and industrial

5352 5000 1

5352 5000 2

Technical Data
Motor power: 550 W
Rotational speed: 2,100 rpm
Drill chuck 1.5 – 13 mm
Chuck adapter: 1/2”
Operating pressure: 6.2 bar
Average air consumption: 385 l/min
Sound level: 83.4 dB(A)
Vibration: 2.5 m/s²
Weight: 1.2 kg
Recommended hose: 8 mm
Air connection: 1/4”
Suitable plug nipple: Art.-No. 3926 14 1

Article No. Article Description QTY
5352 5000 CA-DRILL MACHINE"SUPER SILENT" 1
5352 5000 1 QUICK-ACTION DRILL CHUCK 13MM 1
5352 5000 2 SIDE HANDLE C.A.DRILLM.5000 1

Scope of delivery:
• Compressed-air drill Super Silent, drill chuck 13 mm, suitable plug
nipple Art.-No. 3926 14 3

Related Products

Spiral Hose PUR Plug Nipple, Drilling and Cutting Fluid Twist drill cartridge HSS-E,
Art.-No. 3945 8 20 Outside Thread Art.-No. 6580 5800 MULTI-INOX
Art.-No. 3945 8 60 Art.-No. 3926 14 3 Art.-No. 6580 5805 Art.-No. 5509 5 5506 19
Art.-No. 3945 8 80 Art.-No. 5509 5 5506 25
