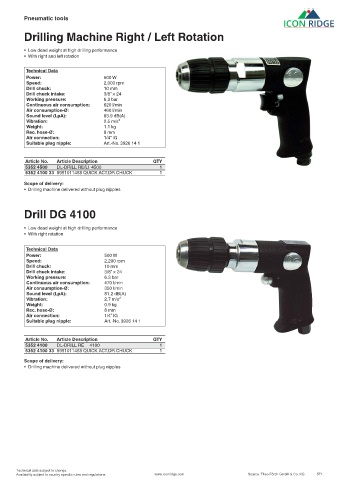

Page 571 - Icon Ridge Maintenance & Service Catalog

Pneumatic tools

Drilling Machine Right / Left Rotation

• Low dead weight at high drilling performance
• With right and left rotation

Technical Data
Power: 500 W
Speed: 2,000 rpm
Drill chuck: 10 mm
Drill chuck intake: 3/8” × 24
Working pressure: 6.3 bar
Continuous air consumption: 620 l/min
Air consumption-Ø: 460 l/min
Sound level (LpA): 83.9 dB(A)
Vibration: 2.5 m/s²
Weight: 1.1 kg
Rec. hose-Ø: 8 mm
Air connection: 1/4” IG
Suitable plug nipple: Art.-No. 3926 14 1

Article No. Article Description QTY
5352 4500 DL-DRILL RE/LI 4500 1
5352 4100 33 8951011458 QUICK ACT.DR.CHUCK 1
Scope of delivery:
• Drilling machine delivered without plug nipples

Drill DG 4100

• Low dead weight at high drilling performance
• With right rotation

Technical Data
Power: 500 W
Speed: 2,200 rpm
Drill chuck: 10 mm
Drill chuck intake: 3/8” × 24
Working pressure: 6.3 bar
Continuous air consumption: 470 l/min
Air consumption-Ø: 350 l/min
Sound level (LpA): 81.2 dB(A)
Vibration: 2.7 m/s²
Weight: 0.9 kg
Rec. hose-Ø: 8 mm
Air connection: 1/4” IG
Suitable plug nipple: Art.-No. 3926 14 1

Article No. Article Description QTY
5352 4100 DL-DRILL RE 4100 1
5352 4100 33 8951011458 QUICK ACT.DR.CHUCK 1

Scope of delivery:
• Drilling machine delivered without plug nipples

Technical data subject to change.
