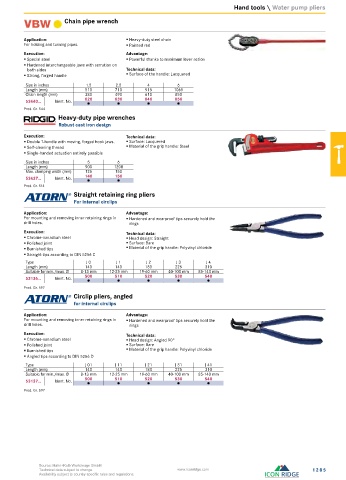

Page 1283 - Icon Ridge Industrial Tools Catalog

Hand tools \ Water pump pliers
Chain pipe wrench

Application: ƒ Heavy-duty steel chain
For holding and turning pipes. ƒ Painted red
Execution: Advantage:
ƒ Special steel ƒ Powerful thanks to maximum lever action
ƒ Hardened interchangeable jaws with serration on
both sides Technical data:
ƒ Strong, forged handle ƒ Surface of the handle: Lacquered
Size in inches 1.5 2.5 4 6
Length (mm) 510 710 915 1065
Chain length (mm) 380 490 610 850
53440... Ident. No. 020 030 040 050
●
●
●
●
Prod. Gr. 544
Heavy-duty pipe wrenches
Robust cast iron design
Execution: Technical data:
ƒ Double T-handle with moving, forged hook jaws. ƒ Surface: Lacquered
ƒ Self-cleaning thread ƒ Material of the grip handle: Steel
ƒ Single-handed actuation entirely possible
Size in inches 5 6
Length (mm) 900 1200
Max. clamping width (mm) 125 150
53437... Ident. No. 140 150
●
●
Prod. Gr. 514
Straight retaining ring pliers
For internal circlips
Application: Advantage:
For mounting and removing inner retaining rings in ƒ Hardened and wearproof tips securely hold the
drill holes. rings
Execution: Technical data:
ƒ Chrome-vanadium steel ƒ Head design: Straight
ƒ Polished joint ƒ Surface: Bare
ƒ Burnished tips ƒ Material of the grip handle: Polyvinyl chloride
ƒ Straight tips according to DIN 5256 C
Type J 0 J 1 J 2 J 3 J 4
Length (mm) 140 140 180 225 310
Suitable for min./max. Ø 8-13 mm 12-25 mm 19-60 mm 40-100 mm 85-140 mm
53136... Ident. No. 500 510 520 530 540
●
●
●
●
●
Prod. Gr. 597
Circlip pliers, angled
for internal circlips
Application: Advantage:
For mounting and removing inner retaining rings in ƒ Hardened and wearproof tips securely hold the
drill holes. rings
Execution: Technical data:
ƒ Chrome-vanadium steel ƒ Head design: Angled 90°
ƒ Polished joint ƒ Surface: Bare
ƒ Burnished tips ƒ Material of the grip handle: Polyvinyl chloride
ƒ Angled tips according to DIN 5256 D
Type J 01 J 11 J 21 J 31 J 41
Length (mm) 140 140 180 225 310
Suitable for min./max. Ø 8-13 mm 12-25 mm 19-60 mm 40-100 mm 85-140 mm
53137... Ident. No. 500 510 520 530 540
●
●
●
●
●
Prod. Gr. 597

Source: Hahn+Kolb Werkzeuge GmbH
Technical data subject to change. www.iconridge.com 1285
Availability subject to country specific rules and regulations.
