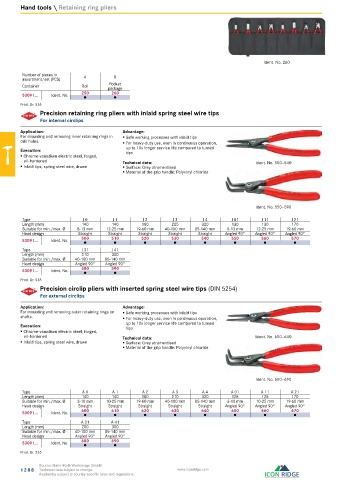

Page 1286 - Icon Ridge Industrial Tools Catalog

Hand tools \ Retaining ring pliers

Ident. No. 260

Number of pieces in 4 8
assortment/set (PCS)
Pocket
Container Roll package
53091... Ident. No. 250 260
●
●
Prod. Gr. 535
Precision retaining ring pliers with inlaid spring steel wire tips
For internal circlips
Application: Advantage:
For mounting and removing inner retaining rings in ƒ Safe working processes with inlaid tips
drill holes. ƒ For heavy-duty use, even in continuous operation,
Execution: up to 10x longer service life compared to turned
tips
ƒ Chrome-vanadium electric steel, forged,
oil-hardened Technical data: Ident. No. 500–540
ƒ Inlaid tips, spring steel wire, drawn ƒ Surface: Grey atramentised
ƒ Material of the grip handle: Polyvinyl chloride

Ident. No. 550–590

Type J 0 J 1 J 2 J 3 J 4 J 01 J 11 J 21
Length (mm) 140 140 180 225 320 130 130 170
Suitable for min./max. Ø 8-13 mm 12-25 mm 19-60 mm 40-100 mm 85-140 mm 8-13 mm 12-25 mm 19-60 mm
Head design Straight Straight Straight Straight Straight Angled 90° Angled 90° Angled 90°
53091... Ident. No. 500 510 520 530 540 550 560 570
●
●
●
●
●
●
●
●
Type J 31 J 41
Length (mm) 210 300
Suitable for min./max. Ø 40-100 mm 85-140 mm
Head design Angled 90° Angled 90°
53091... Ident. No. 580 590
●
●
Prod. Gr. 535
Precision circlip pliers with inserted spring steel wire tips (DIN 5254)
For external circlips
Application: Advantage:
For mounting and removing outer retaining rings on ƒ Safe working processes with inlaid tips
shafts. ƒ For heavy-duty use, even in continuous operation,
Execution: up to 10x longer service life compared to turned
tips
ƒ Chrome-vanadium electric steel, forged,
oil-hardened Technical data: Ident. No. 600–640
ƒ Inlaid tips, spring steel wire, drawn ƒ Surface: Grey atramentised
ƒ Material of the grip handle: Polyvinyl chloride
Ident. No. 650–690
Type A 0 A 1 A 2 A 3 A 4 A 01 A 11 A 21
Length (mm) 140 140 180 210 320 125 125 170
Suitable for min./max. Ø 3-10 mm 10-25 mm 19-60 mm 40-100 mm 85-140 mm 3-10 mm 10-25 mm 19-60 mm
Head design Straight Straight Straight Straight Straight Angled 90° Angled 90° Angled 90°
53091... Ident. No. 600 610 620 630 640 650 660 670
●
●
●
●
●
●
●
●
Type A 31 A 41
Length (mm) 200 300
Suitable for min./max. Ø 40-100 mm 85-140 mm
Head design Angled 90° Angled 90°
53091... Ident. No. 680 690
●
●
Prod. Gr. 535
Source: Hahn+Kolb Werkzeuge GmbH
