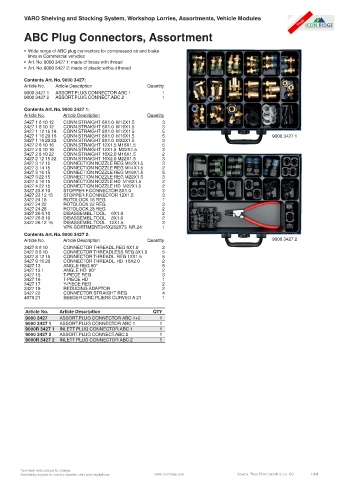

Page 1004 - Icon Ridge Automotive & Truck Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

ABC Plug Connectors, Assortment

• Wide range of ABC plug connectors for compressed air and brake
lines in Commercial vehicles
• Art. No. 9000 3427 1: made of brass with thread
• Art. No. 9000 3427 2: made of plastic without thread

Contents Art. No. 9000 3427:
Article No. Article Description Quantity
9000 3427 1 ASSORT.PLUG CONNECTOR ABC 1 1
9000 3427 2 ASSORT.PLUG CONNECT.ABC 2 1

Contents Art. No. 9000 3427 1:
Article No. Article Description Quantity
3427 1 6 10 12 CONN.STRAIGHT 6X1.0 M12X1.5 3
3427 1 8 10 12 CONN.STRAIGHT 6X1.0 M16X1.5 3
3427 1 12 15 16 CONN.STRAIGHT 8X1.0 M12X1.5 5
3427 1 16 20 16 CONN.STRAIGHT 8X1.0 M16X1.5 5 9000 3427 1
3427 1 16 20 22 CONN.STRAIGHT 8X1.0 M22X1.5 3
3427 2 6 10 16 CONN.STRAIGHT 12X1.5 M16X1.5 5
3427 2 8 10 16 CONN.STRAIGHT 12X1.5 M22X1.5 3
3427 2 8 10 22 CONN.STRAIGHT 16X2.0 M16X1.5 2
3427 2 12 15 22 CONN.STRAIGHT 16X2.0 M22X1.5 3
3427 3 12 15 CONNECTION NOZZLE REG M12X1.5 3
3427 3 14 15 CONNECTION NOZZLE REG M14X1.5 2
3427 3 16 15 CONNECTION NOZZLE REG M16X1.5 5
3427 3 22 15 CONNECTION NOZZLE REG M22X1.5 3
3427 4 16 15 CONNECTION NOZZLE HD M16X1.5 2
3427 4 22 15 CONNECTION NOZZLE HD M22X1.5 2
3427 23 8 10 STOPPER F.CONNECTOR 8X1.0 3
3427 23 12 15 STOPPER F.CONNECTOR 12X1.5 3
3427 24 18 ROTOLOCK 18 REG 1
3427 24 22 ROTOLOCK 22 REG 3
3427 24 28 ROTOLOCK 28 REG 2
3427 26 6 10 DISASSEMBL.TOOL 6X1.0 2
3427 26 8 10 DISASSEMBL.TOOL 8X1.0 2
3427 26 12 15 DISASSEMBL.TOOL 12X1.5 2
VPK-SORTIMENT345X262X73 NR.24 1
Contents Art. No. 9000 3427 2:
Article No. Article Description Quantity 9000 3427 2
3427 8 6 10 CONNECTOR THREADL.REG 6X1.0 2
3427 8 8 10 CONNECTOR THREADLESS REG 8X1.0 5
3427 8 12 15 CONNECTOR THREADL. REG 12X1.5 5
3427 9 16 20 CONNECTOR THREADL. HD 16X2.0 2
3427 13 ANGLE REG 90° 5
3427 13 1 ANGLE HD 90° 2
3427 15 T-PIECE REG 3
3427 16 T-PIECE HD 1
3427 17 Y-PIECE REG 2
3427 19 REDUCING ADAPTOR 2
3427 22 CONNECTOR STRAIGHT REG 4
4076 21 SEEGER CIRC.PLIERS CURVED A 21 1

Article No. Article Description QTY
9000 3427 ASSORT.PLUG CONNECTOR ABC 1+2 1
9000 3427 1 ASSORT.PLUG CONNECTOR ABC 1 1
9000R 3427 1 INLETT PLUG CONNECTOR ABC 1 1
9000 3427 2 ASSORT.PLUG CONNECT.ABC 2 1
9000R 3427 2 INLETT PLUG CONNECTOR ABC 2 1

Technical data subject to change.
