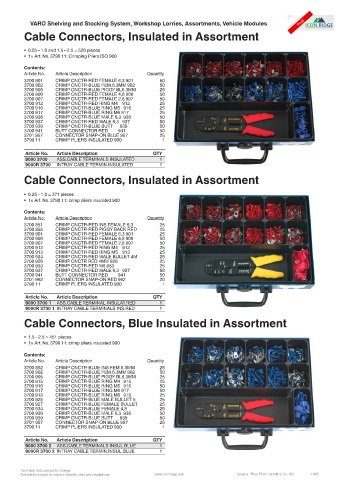

Page 1005 - Icon Ridge Automotive & Truck Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules
Cable Connectors, Insulated in Assortment

• 0.25 – 1.0 and 1.5 – 2.5 = 526 pieces
• 1× Art. No. 3790 11: Crimping Pliers ISO 900
Contents:
Article No. Article Description Quantity
3700 901 CRIMP CNCTR-RED FEMALE 6,3 901 50
3700 902 CRIMP CNCTR-BLUE FEM.6.3MM 902 50
3700 905 CRIMP CNCTR-BLUE PIGGY BL6.3MM 25
3700 906 CRIMP CNCTR-RED FEMALE 4,8 906 50
3700 907 CRIMP CNCTR-RED FEMALE 2,8 907 50
3700 912 CRIMP CNCTR-RED RING M4 912 25
3700 916 CRIMP CNCTR-BLUE RING M5 916 25
3700 917 CRIMP CNCTR-BLUE RING M6 917 25
3700 936 CRIMP CNCTR-BLUE MALE 6,3 936 50
3700 937 CRIMP CNCTR-RED MALE 6,3 937 50
3700 939 CRIMP CNCTR-BLUE BUTT 939 50
3700 941 BUTT CONNECTOR RED 941 50
3701 957 CONNECTOR SNAP-ON BLUE 957 25
3790 11 CRIMP PLIERS INSULATED 900 1

Article No. Article Description QTY
9000 3700 ASS.CABLE TERMINALS INSULATED 1
9000R 3700 INTRAY CABLE TERMIN.INSULATED 1
Cable Connectors, Insulated in Assortment

• 0.25 – 1.0 = 371 pieces
• 1× Art. No. 3790 11: crimp pliers insulated 900
Contents:
Article No. Article Description Quantity
3700 851 CRIMP CNCTR-RED INS FEMALE 6,3 25
3700 855 CRIMP CNCTR-RED PIGGY BACK RED 25
3700 901 CRIMP CNCTR-RED FEMALE 6,3 901 25
3700 906 CRIMP CNCTR-RED FEMALE 4,8 906 50
3700 907 CRIMP CNCTR-RED FEMALE 2,8 907 50
3700 912 CRIMP CNCTR-RED RING M4 912 25
3700 913 CRIMP CNCTR-RED RING M5 913 25
3700 924 CRIMP CNCTR-RED MALE BULLET 4M 25
3700 926 CRIMP CNCTR RED 4MM 926 25
3700 933 CRIMP CNCTR-RED M6 933 25
3700 937 CRIMP CNCTR-RED MALE 6,3 937 50
3700 941 BUTT CONNECTOR RED 941 50
3701 962 CONNECTOR SNAP-ON RED 962 20
3790 11 CRIMP PLIERS INSULATED 900 1

Article No. Article Description QTY
9000 3700 1 ASS.CABLE TERMINAL INSULAT.RED 1
9000R 3700 1 INTRAY CABLE TERMINALS INS.RED 1

Cable Connectors, Blue Insulated in Assortment

• 1.5 – 2.5 = 451 pieces
• 1× Art. No. 3790 11: crimp pliers insulated 900
Contents:
Article No. Article Description Quantity
3700 852 CRIMP CNCTR-BLUE INS FEM.6.3MM 25
3700 902 CRIMP CNCTR-BLUE FEM.6.3MM 902 50
3700 905 CRIMP CNCTR-BLUE PIGGY BL6.3MM 25
3700 915 CRIMP CNCTR-BLUE RING M4 915 25
3700 916 CRIMP CNCTR-BLUE RING M5 916 50
3700 917 CRIMP CNCTR-BLUE RING M6 917 50
3700 918 CRIMP CNCTR-BLUE RING M8 918 25
3700 925 CRIMP CNCTR-BLUE MALE BULLET 5 25
3700 927 CRIMP CNCTR-BLUE FEMALE BULLET 25
3700 934 CRIMP CNCTR-BLUE FEMALE 4,8 25
3700 936 CRIMP CNCTR-BLUE MALE 6,3 936 50
3700 939 CRIMP CNCTR-BLUE BUTT 939 50
3701 957 CONNECTOR SNAP-ON BLUE 957 25
3790 11 CRIMP PLIERS INSULATED 900 1

Article No. Article Description QTY
9000 3700 2 ASS.CABLE TERMINALS INSUL.BLUE 1
9000R 3700 2 INTRAY CABLE TERMIN.INSUL.BLUE 1

Technical data subject to change.
