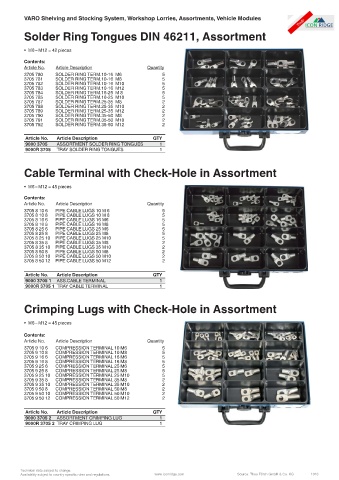

Page 1010 - Icon Ridge Automotive & Truck Catalog

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

Solder Ring Tongues DIN 46211, Assortment

• M6 – M12 = 42 pieces
Contents:
Article No. Article Description Quantity
3705 780 SOLDER RING TERM.10-16 M6 5
3705 781 SOLDER RING TERM.10-16 M8 5
3705 782 SOLDER RING TERM.10-16 M10 5
3705 783 SOLDER RING TERM.10-16 M12 5
3705 784 SOLDER RING TERM.16-25 M 8 5
3705 785 SOLDER RING TERM.16-25 M10 5
3705 787 SOLDER RING TERM.25-35 M8 2
3705 788 SOLDER RING TERM.25-35 M10 2
3705 789 SOLDER RING TERM.25-35 M12 2
3705 790 SOLDER RING TERM.35-50 M8 2
3705 791 SOLDER RING TERM.35-50 M10 2
3705 792 SOLDER RING TERM.35-50 M12 2

Article No. Article Description QTY
9000 3705 ASSORTMENT SOLDER RING TONGUES 1
9000R 3705 TRAY SOLDER RING TONGUES 1

Cable Terminal with Check-Hole in Assortment

• M6 – M12 = 45 pieces

Contents:
Article No. Article Description Quantity
3705 8 10 6 PIPE CABLE LUGS 10 M 6 5
3705 8 10 8 PIPE CABLE LUGS 10 M 8 5
3705 8 16 6 PIPE CABLE LUGS 16 M6 5
3705 8 16 8 PIPE CABLE LUGS 16 M8 5
3705 8 25 6 PIPE CABLE LUGS 25 M6 5
3705 8 25 8 PIPE CABLE LUGS 25 M8 5
3705 8 25 10 PIPE CABLE LUGS 25 M10 5
3705 8 35 8 PIPE CABLE LUGS 35 M8 2
3705 8 35 10 PIPE CABLE LUGS 35 M10 2
3705 8 50 8 PIPE CABLE LUGS 50 M8 2
3705 8 50 10 PIPE CABLE LUGS 50 M10 2
3705 8 50 12 PIPE CABLE LUGS 50 M12 2

Article No. Article Description QTY
9000 3705 1 ASS.CABLE TERMINAL 1
9000R 3705 1 TRAY CABLE TERMINAL 1

Crimping Lugs with Check-Hole in Assortment

• M6 – M12 = 45 pieces

Contents:
Article No. Article Description Quantity
3705 9 10 6 COMPRESSION TERMINAL 10 M6 5
3705 9 10 8 COMPRESSION TERMINAL 10 M8 5
3705 9 16 6 COMPRESSION TERMINAL 16 M6 5
3705 9 16 8 COMPRESSION TERMINAL 16 M8 5
3705 9 25 6 COMPRESSION TERMINAL 25 M6 5
3705 9 25 8 COMPRESSION TERMINAL 25 M8 5
3705 9 25 10 COMPRESSION TERMINAL 25 M10 5
3705 9 35 8 COMPRESSION TERMINAL 35 M8 2
3705 9 35 10 COMPRESSION TERMINAL 35 M10 2
3705 9 50 8 COMPRESSION TERMINAL 50 M8 2
3705 9 50 10 COMPRESSION TERMINAL 50 M10 2
3705 9 50 12 COMPRESSION TERMINAL 50 M12 2

Article No. Article Description QTY
9000 3705 2 ASSORTMENT CRIMPING LUG 1
9000R 3705 2 TRAY CRIMPING LUG 1

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 1010
