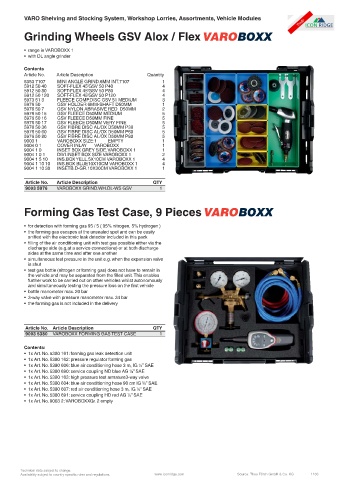

P. 1160
VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules
Grinding Wheels GSV Alox / Flex
• range in VAROBOXX 1
• with DL angle grinder
Contents
Article No. Article Description Quantity
5353 7107 MINI ANGLE GRIND.6MM INT.7107 1
5912 50 40 SOFT-FLEX 45'GSV 50 P40 4
5912 50 80 SOFT-FLEX 45'GSV 50 P80 4
5912 50 120 SOFT-FLEX 45'GSV 50 P120 4
5973 51 3 FLEECE COMP.DISC GSV 51 MEDIUM 3
5976 50 GSV HOLDER 6MM-SHAFT D50MM 1
5976 50 7 GSV NYLON ABRASIVE RED D50MM 2
5976 50 15 GSV FLEECE D50MM MEDIUM 5
5976 50 16 GSV FLEECE D50MM FINE 5
5976 50 17 GSV FLEECE D50MM VERY FINE 5
5976 50 36 GSV FIBRE DISC AL/OX D50MM P36 5
5976 50 60 GSV FIBRE DISC AL/OX D50MM P60 5
5976 50 80 GSV FIBRE DISC AL/OX D50MM P80 5
9003 1 VAROBOXX SIZE:1 EMPTY 1
9004 0 1 COVER INLAY VAROBOXX 1
9004 1 0 INSET BOX GREY SIDE.VAROBOXX 1 1
9004 1 0 1 DIVI.INSET BOX SIZE VAROBOXX 1 2
9004 1 5 10 INS.BOX YELL.5X10CM VAROBOXX 1 4
9004 1 10 10 INS.BOX BLUE10X10CM VAROBOXX 1 4
9004 1 10 30 INSETB.D-GR.10X30CM VAROBOXX 1 1
Article No. Article Description QTY
9003 5976 VAROBOXX GRIND.WH.DL-WS GSV 1
Forming Gas Test Case, 9 Pieces
• for detection with forming gas 95 / 5 ( 95% nitrogen, 5% hydrogen )
• the forming gas escapes at the unsealed spot and can be easily
sniffed with the electronic leak detector included in this pack
• filling of the air conditioning unit with test gas possible either via the
discharge side (e.g.at a service connections) or at both discharge
sides at the same time and after one another
• simultaneous test pressure in the unit e.g. when the expansion valve
is shut
• test gas bottle (nitrogen or forming gas) does not have to remain in
the vehicle and may be separated from the filled unit. This enables
further work to be carried out on other vehicles whilst autonomously
and simultaneously testing the pressure loss on the first vehicle
• bottle manometer max. 20 bar
• 3-way valve with pressure manometer max. 34 bar
• the forming gas is not included in the delivery
Article No. Article Description QTY
9003 5380 VAROBOXX FORMING GAS TEST CASE 1
Contents:
• 1x Art. No. 5380 161: forming gas leak detection unit
• 1x Art. No. 5380 162: pressure regulator forming gas
• 1x Art. No. 5380 606: blue air conditioning hose 3 m, IG ¼” SAE
• 1x Art. No. 5380 690: service coupling ND blue AG ¼” SAE
• 1x Art. No. 5380 163: high pressure test armature3-way valve
• 1x Art. No. 5380 604: blue air conditioning hose 90 cm IG ¼” SAE
• 1x Art. No. 5380 607: red air conditioning hose 3 m, IG ¼” SAE
• 1x Art. No. 5380 691: service coupling HD red AG ¼” SAE
• 1x Art. No. 9003 2: VAROBOXXGr. 2 empty
Technical data subject to change.
