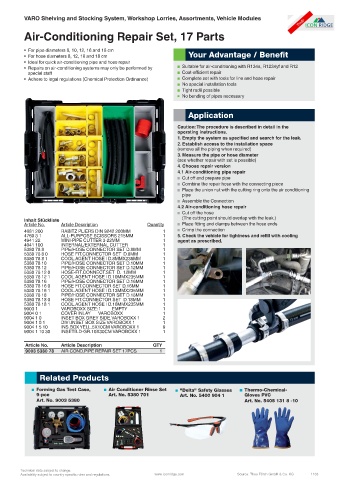

P. 1163

VARO Shelving and Stocking System, Workshop Lorries, Assortments, Vehicle Modules

Air-Conditioning Repair Set, 17 Parts

• For pipe diameters 8, 10, 12, 16 and 18 cm
• For hose diameters 8, 12, 16 and 18 cm Your Advantage / Beneﬁt
• Ideal for quick air-conditioning pipe and hose repair
• Repairs on air-conditioning systems may only be performed by Suitable for air-conditioning with R134a, R1234yf and R12
special staff Cost-efficient repair
• Adhere to legal regulations (Chemical Protection Ordinance) Complete set with tools for line and hose repair
No special installation tools
Tight radii possible
No bending of pipes necessary

Application

Caution: The procedure is described in detail in the
operating instructions.
1. Empty the system as specified and search for the leak.
2. Establish access to the installation space
(remove all the piping when required)
3. Measure the pipe or hose diameter
(see whether repair with set is possible)
4. Choose repair version
4.1 Air-conditioning pipe repair
Cut off and prepare pipe
Combine the repair hose with the connecting piece
Place the union nut with the cutting ring onto the air conditioning
pipe
Assemble the Connection
4.2 Air-conditioning hose repair
Cut off the hose
(The cutting point should overlap with the leak.)
Inhalt Stückliste
Article No. Article Description Quantity Place fitting and clamps between the hose ends
4681 200 RABITZ PLIERS DIN 9242 200MM 1 Crimp the connection
4760 3 1 ALL-PURPOSE SCISSORS 215MM 1 5. Check the vehicle for tightness and refill with cooling
4941 22 MINI-PIPE CUTTER 3-22MM 1 agent as prescribed.
4941 100 INTERNAL/EXTERNAL CUTTER 1
5380 78 8 PIPE/HOSE CONNECTOR SET D.8MM 1
5380 78 8 0 HOSE FIT.CONNECTOR SET D.8MM 1
5380 78 8 1 COOL.AGENT HOSE I D.8MMX235MM 1
5380 78 10 PIPE/HOSE CONNECTOR SET D.10MM 1
5380 78 12 PIPE/HOSE CONNECTOR SET D.12MM 1
5380 78 12 0 HOSE-FIT.CONNECT.SET D. 12MM 1
5380 78 12 1 COOL.AGENT HOSE I D.10MMX235MM 1
5380 78 16 PIPE/HOSE CONNECTOR SET D.16MM 1
5380 78 16 0 HOSE FIT.CONNECTOR SET D.16MM 1
5380 78 16 1 COOL.AGENT HOSE I D.13MMX235MM 1
5380 78 18 PIPE/HOSE CONNECTOR SET D.18MM 1
5380 78 18 0 HOSE FIT.CONNECTOR SET D.18MM 1
5380 78 18 1 COOL.AGENT HOSE I D.16MMX235MM 1
9003 1 VAROBOXX SIZE:1 EMPTY 1
9004 0 1 COVER INLAY VAROBOXX 1
9004 1 0 INSET BOX GREY SIDE.VAROBOXX 1 2
9004 1 0 1 DIVI.INSET BOX SIZE VAROBOXX 1 1
9004 1 5 10 INS.BOX YELL.5X10CM VAROBOXX 1 9
9004 1 10 30 INSETB.D-GR.10X30CM VAROBOXX 1 1

Article No. Article Description QTY
9003 5380 78 AIR COND.PIPE REPAIR SET 17PCS 1
