Truckline

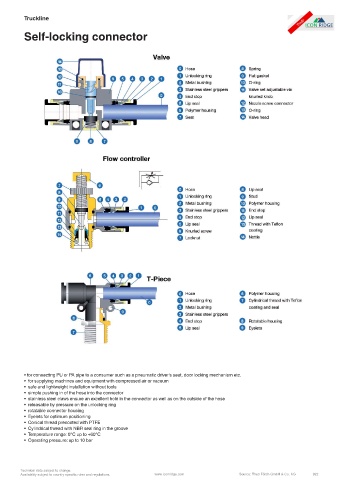

Self-locking connector

• for connecting PU or PA pipe to a consumer such as a pneumatic driver's seat, door locking mechanism etc.
• for supplying machines and equipment with compressed air or vacuum
• safe and lightweight installation without tools
• simple pushing in of the hose into the connector
• stainless steel claws ensure an excellent hold in the connector as well as on the outside of the hose
• releasable by pressure on the unlocking ring
• rotatable connector housing
• Eyelets for optimum positioning
• Conical thread precoated with PTFE
• Cylindrical thread with NBR seal ring in the groove
• Temperature range: 0°C up to +60°C
• Operating pressure: up to 10 bar

Technical data subject to change.
