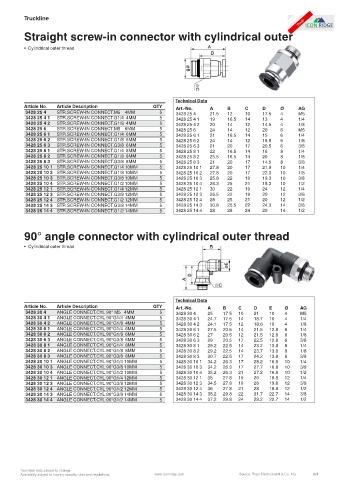

P. 924
Truckline
Straight screw-in connector with cylindrical outer
• Cylindrical outer thread
Technical Data
Article No. Article Description QTY Art.-No. A B C D Ø AG
3428 25 4 STR.SCREW-IN CONNECT.M5 4MM 5 3428 25 4 21.5 12 10 17.5 4 M5
3428 25 4 1 STR.SCREW-IN CONNECT.G1/4 4MM 5 3428 25 4 1 19 16.5 14 13 4 1/4
3428 25 4 2 STR.SCREW-IN CONNECT.G1/8 4MM 5 3428 25 4 2 20 14 12 14.5 4 1/8
3428 25 6 STR.SCREW-IN CONNECT.M5 6MM 5 3428 25 6 24 14 12 20 6 M5
3428 25 6 1 STR.SCREW-IN CONNECT.G1/4 6MM 5 3428 25 6 1 21 16.5 14 15 6 1/4
3428 25 6 2 STR.SCREW-IN CONNECT.G1/8 6MM 5 3428 25 6 2 24 14 12 18.5 6 1/8
3428 25 6 3 STR.SCREW-IN CONNECT.G3/8 6MM 5 3428 25 6 3 21 20 17 20.5 6 3/8
3428 25 8 1 STR.SCREW-IN CONNECT.G1/4 8MM 5 3428 25 8 1 22 16.5 14 16 8 1/4
3428 25 8 2 STR.SCREW-IN CONNECT.G1/8 8MM 5 3428 25 8 2 25.5 16.5 14 20 8 1/8
3428 25 8 3 STR.SCREW-IN CONNECT.G3/8 8MM 5 3428 25 8 3 21 20 17 14.5 8 3/8
3428 25 10 1 STR.SCREW-IN CONNECT.G1/4 10MM 5 3428 25 10 1 27.8 20 17 21.8 10 1/4
3428 25 10 2 STR.SCREW-IN CONNECT.G1/8 10MM 5 3428 25 10 2 27.8 20 17 22.3 10 1/8
3428 25 10 3 STR.SCREW-IN CONNECT.G3/8 10MM 5 3428 25 10 3 25.8 22 19 19.3 10 3/8
3428 25 10 4 STR.SCREW-IN CONNECT.G1/2 10MM 5 3428 25 10 4 26.3 25 21 18.3 10 1/2
3428 25 12 1 STR.SCREW-IN CONNECT.G1/4 12MM 5 3428 25 12 1 30 22 19 24 12 1/4
3428 25 12 3 STR.SCREW-IN CONNECT.G3/8 12MM 5 3428 25 12 3 26.5 22 19 20 12 3/8
3428 25 12 4 STR.SCREW-IN CONNECT.G1/2 12MM 5 3428 25 12 4 28 25 21 20 12 1/2
3428 25 14 3 STR.SCREW-IN CONNECT.G3/8 14MM 5 3428 25 14 3 30.8 25.5 22 24.3 14 3/8
3428 25 14 4 STR.SCREW-IN CONNECT.G1/2 14MM 5 3428 25 14 4 28 28 24 20 14 1/2
90° angle connector with cylindrical outer thread
• Cylindrical outer thread
Technical Data
Article No. Article Description QTY Art.-No. A B C D E Ø AG
3428 30 4 ANGLE CONNECT.CYL.90° M5 4MM 5 3428 30 4 25 17.5 10 21 10 4 M5
3428 30 4 1 ANGLE CONNECT.CYL.90°G1/4 4MM 5 3428 30 4 1 24.7 17.5 14 18.7 10 4 1/4
3428 30 4 2 ANGLE CONNECT.CYL.90°G1/8 4MM 5 3428 30 4 2 24.1 17.5 12 18.6 10 4 1/8
3428 30 6 1 ANGLE CONNECT.CYL.90°G1/4 6MM 5 3428 30 6 1 27.5 20.5 14 21.5 12.8 6 1/4
3428 30 6 2 ANGLE CONNECT.CYL.90°G1/8 6MM 5 3428 30 6 2 27 20.5 12 21.5 12.8 6 1/8
3428 30 6 3 ANGLE CONNECT.CYL.90°G3/8 6MM 5 3428 30 6 3 29 20.5 17 22.5 12.8 6 3/8
3428 30 8 1 ANGLE CONNECT.CYL.90°G1/4 8MM 5 3428 30 8 1 29.2 22.5 14 23.2 13.8 8 1/4
3428 30 8 2 ANGLE CONNECT.CYL.90°G1/8 8MM 5 3428 30 8 2 29.2 22.5 14 23.7 13.8 8 1/8
3428 30 8 3 ANGLE CONNECT.CYL.90°G3/8 8MM 5 3428 30 8 3 30.7 22.5 17 24.2 13.8 8 3/8
3428 30 10 1 ANGLE CONNECT.CYL.90°G1/4 10MM 5 3428 30 10 1 34.2 26.3 17 28.2 16.8 10 1/4
3428 30 10 3 ANGLE CONNECT.CYL.90°G3/8 10MM 5 3428 30 10 3 34.2 26.3 17 27.7 16.8 10 3/8
3428 30 10 4 ANGLE CONNECT.CYL.90°G1/2 10MM 5 3428 30 10 4 35.2 26.3 21 27.2 16.8 10 1/2
3428 30 12 1 ANGLE CONNECT.CYL.90°G1/4 12MM 5 3428 30 12 1 35 27.8 19 29 19.8 12 1/4
3428 30 12 3 ANGLE CONNECT.CYL.90°G3/8 12MM 5 3428 30 12 3 34.5 27.8 19 28 19.8 12 3/8
3428 30 12 4 ANGLE CONNECT.CYL.90°G1/2 12MM 5 3428 30 12 4 36 27.8 21 28 19.8 12 1/2
3428 30 14 3 ANGLE CONNECT.CYL.90°G3/8 14MM 5 3428 30 14 3 38.2 29.8 22 31.7 22.7 14 3/8
3428 30 14 4 ANGLE CONNECT.CYL.90°G1/2 14MM 5 3428 30 14 4 37.2 29.8 24 29.2 22.7 14 1/2
Technical data subject to change.
