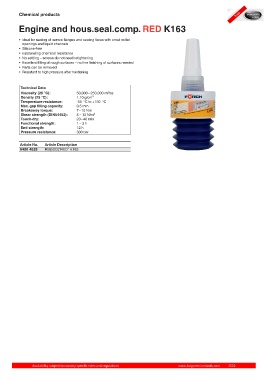

Page 1522 - BPT Automotive & Truck Catalog

Chemical products

Engine and hous.seal.comp. RED K163

• Ideal for sealing of narrow flanges and sealing faces with small outlet
openings and liquid channels
• Silicone-free
• outstanding chemical resistance
• No settling – screws do not need retightening
• Excellent filling of rough surfaces – no fine finishing of surfaces needed
• Parts can be removed
• Resistant to high pressure after hardening

Technical Data
Viscosity (25 °C): 50,000 - 250,000 mPas
Density (25 °C): 1.10 g/cm³
Temperature resistance: -55 °C to +150 °C
Max. gap filling capacity: 0.5 mm
Breakaway torque: 7 – 10 Nm
Shear strength (DIN54452): 8 – 13 N/m²
Touch-dry: 20 – 40 min
Functional strength: 1 – 3 h
End strength: 12 h
Pressure resistance: 300 bar

Article No. Article Description
6480 4525 RB(50G)"RED" K163
