each row of inputs, we will calculate Y and Z, respectively. Then we would
add Y and Z, to get X.

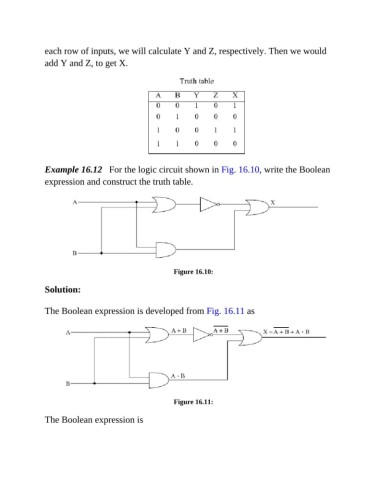

Example 16.12 For the logic circuit shown in Fig. 16.10, write the Boolean
expression and construct the truth table.
Figure 16.10:
Solution:
The Boolean expression is developed from Fig. 16.11 as
Figure 16.11:
The Boolean expression is
