P. 514
Flux,

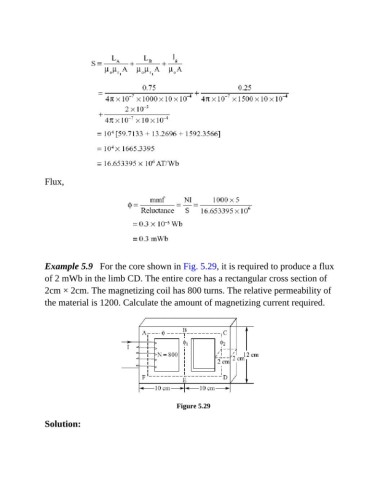

Example 5.9 For the core shown in Fig. 5.29, it is required to produce a flux
of 2 mWb in the limb CD. The entire core has a rectangular cross section of
2cm × 2cm. The magnetizing coil has 800 turns. The relative permeability of
the material is 1200. Calculate the amount of magnetizing current required.
Figure 5.29
Solution:
