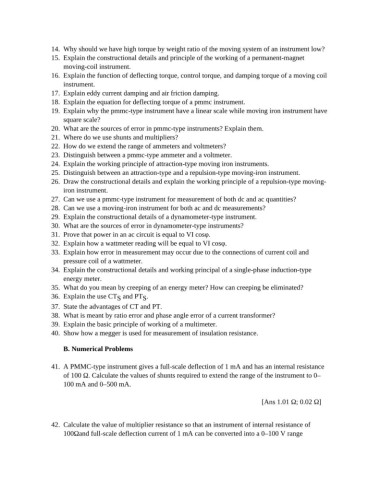

14. Why should we have high torque by weight ratio of the moving system of an instrument low?
15. Explain the constructional details and principle of the working of a permanent-magnet
moving-coil instrument.
16. Explain the function of deflecting torque, control torque, and damping torque of a moving coil
instrument.
17. Explain eddy current damping and air friction damping.
18. Explain the equation for deflecting torque of a pmmc instrument.
19. Explain why the pmmc-type instrument have a linear scale while moving iron instrument have
square scale?
20. What are the sources of error in pmmc-type instruments? Explain them.
21. Where do we use shunts and multipliers?
22. How do we extend the range of ammeters and voltmeters?
23. Distinguish between a pmmc-type ammeter and a voltmeter.
24. Explain the working principle of attraction-type moving iron instruments.
25. Distinguish between an attraction-type and a repulsion-type moving-iron instrument.
26. Draw the constructional details and explain the working principle of a repulsion-type moving-
iron instrument.
27. Can we use a pmmc-type instrument for measurement of both dc and ac quantities?
28. Can we use a moving-iron instrument for both ac and dc measurements?
29. Explain the constructional details of a dynamometer-type instrument.
30. What are the sources of error in dynamometer-type instruments?
31. Prove that power in an ac circuit is equal to VI cosφ.
32. Explain how a wattmeter reading will be equal to VI cosφ.
33. Explain how error in measurement may occur due to the connections of current coil and
pressure coil of a wattmeter.
34. Explain the constructional details and working principal of a single-phase induction-type
energy meter.
35. What do you mean by creeping of an energy meter? How can creeping be eliminated?
36. Explain the use CT and PT .
S
S
37. State the advantages of CT and PT.
38. What is meant by ratio error and phase angle error of a current transformer?
39. Explain the basic principle of working of a multimeter.
40. Show how a megger is used for measurement of insulation resistance.

B. Numerical Problems

41. A PMMC-type instrument gives a full-scale deflection of 1 mA and has an internal resistance
of 100 Ω. Calculate the values of shunts required to extend the range of the instrument to 0–
100 mA and 0–500 mA.

[Ans 1.01 Ω; 0.02 Ω]

42. Calculate the value of multiplier resistance so that an instrument of internal resistance of
100Ωand full-scale deflection current of 1 mA can be converted into a 0–100 V range
