Page 938 - Basic Electrical Engineering
P. 938

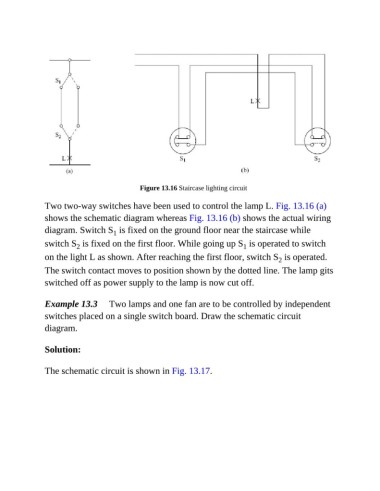

Figure 13.16 Staircase lighting circuit
Two two-way switches have been used to control the lamp L. Fig. 13.16 (a)
shows the schematic diagram whereas Fig. 13.16 (b) shows the actual wiring
diagram. Switch S is fixed on the ground floor near the staircase while
1
switch S is fixed on the first floor. While going up S is operated to switch
2
1
on the light L as shown. After reaching the first floor, switch S is operated.
2
The switch contact moves to position shown by the dotted line. The lamp gits
switched off as power supply to the lamp is now cut off.
Example 13.3 Two lamps and one fan are to be controlled by independent
switches placed on a single switch board. Draw the schematic circuit
diagram.
Solution:
The schematic circuit is shown in Fig. 13.17.
