Product Information Sheet

T-PF.P11T1 - TOUCH 1 BUTTON CONTROL PANEL

T-PF.P11T2 - TOUCH 2 BUTTON CONTROL PANEL

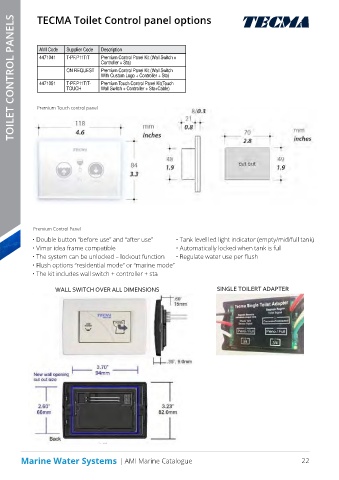

TECMA Toilet Control panel options
DYNAMIC TRIM CONTROL SYSTEMS
TOILET CONTROL PANELS
AMI Code Supplier Code Description
4471041 T-PF.P11T/T Premium Control Panel Kit (Wall Switch +
Controller + Sta)
ON REQUEST Premium Control Panel Kit (Wall Switch
With Custom Logo + Controller + Sta)

4471051 T-PF.P11T/T- Premium Touch Control Panel Kit(Touch
TOUCH Wall Switch + Controller + Sta+Cable)
T-PF.P11T/T TOUCH - PREMIUM TOUCH CONTROL PANEL

Product Information Sheet
Premium Touch control panel

T-PF.P11T/T - PREMIUM CONTROL PANEL

- DOUBLE BUTTON “BEFORE USE” AND “AFTER USE”
- TANK LEVEL LED LIGHT INDICATOR (EMPTY/MID/FULL TANK)
- VIMAR IDEA FRAME COMPATIBLE
- THE SYSTEM IS AUTOMATICALLY LOCKED WHEN THE TANK IS FULL
- THE SYSTEM CAN BE UNLOCKED – LOCKOUT FUNCTION
- THE AMOUNT OF WATER USED PER FLUSH CAN BE REGULATED
Premium Control Panel - SELECTING FLUSHING MODE “RESIDENTIAL MODE” OR “MARINE MODE”
08_SP_V03_CONTROL PANEL • Double button “before use” and “after use” • Tank level led light indicator (empty/mid/full tank)

- USE THE SINGLE TOILET ADAPTER TO CONNECT TO PNEUMATIC TANK (OPT)
- CONNECTS TO “FIELD EFFECT” FULL AND MID TANK SENSOR (OPT)

- THE KIT INCLUDES WALL SWITCH + CONTROLLER + STA
• Vimar idea frame compatible

• Automatically locked when tank is full

• Regulate water use per flush
• The system can be unlocked – lockout function

• Flush options “residential mode” or “marine mode”

• The kit includes wall switch + controller + sta

SINGLE TOILERT ADAPTER

WALL SWITCH OVER ALL DIMENSIONS
For more detail on wiring connections (power, macerator pump, solenoid, controllers and sensor) please refer to the manual
provided with the product . This information is valid as a guide only, Thetford reserves the right to change specification without
prior warning.

CONTROLLER

Marine Water Systems | AMI Marine Catalogue 22

08_SP_V03_CONTROL PANEL

For more detail on wiring connections (power, macerator pump, solenoid, controllers and sensor) please refer to the manual
provided with the product . This information is valid as a guide only, Thetford reserves the right to change specification without
prior warning.
